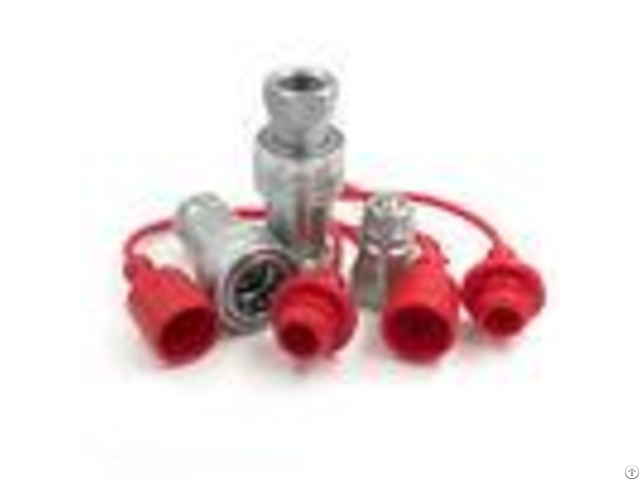

Female Connection Agricultural Hydraulic Quick Disconnects 1 Inch With Long Service Life - China

GT-C1-08 1" ISO steel BSPP thread agricultural hydraulic quick disconnects Feature: 1 - Ball valve provides greater longevity 2 - Proven ball-lock mechanism for positive connection.

3 - Couplers have a high concentration of locking balls to reduce incidents of brinneling during operation.

4 - Heavy-duty knurled sleeves resist brinneling and maximize performance under impulse conditions.

5 - Plated steel construction.

6 - Double shut-off.

Coupler: - - - - Part Number | Body Size | Thread | L1 | D1 | CH1 | GT-C1-02T-SF-NPT1/4 | 1/4" | NPT 1/4" | 53.5 | 27.5 | 19 | GT-C1-02T-SF-ZG1/4 | 1/4" | BSPP 1/4" | 53.5 | 27.5 | 19 | GT-C1-02T-SF-G1/4 | 1/4" | RC 1/4" | 53.5 | 27.5 | 19 | GT-C1-03T-SF-NPT3/8 | 3/8" | NPT 3/8" | 63 | 34 | 24 | GT-C1-03T-SF-ZG3/8 | 3/8" | BSPP 3/8" | 63 | 34 | 24 | GT-C1-03T-SF-G3/8 | 3/8" | RC 3/8" | 63 | 34 | 24 | GT-C1-04T-SF-NPT1/2 | 1/2" | NPT 1/2" | 66.5 | 38.5 | 27 | GT-C1-04T-SF-ZG1/2 | 1/2" | BSPP 1/2" | 66.5 | 38.5 | 27 | GT-C1-04T-SF-G1/2 | 1/2" | RC 1/2" | 66.5 | 38.5 | 27 | GT-C1-06T-SF-NPT3/4 | 3/4" | NPT 3/4" | 82 | 48 | 34 | GT-C1-06T-SF-ZG3/4 | 3/4" | BSPP 3/4" | 82 | 48 | 34 | GT-C1-06T-SF-G3/4 | 3/4" | RC 3/4" | 82 | 48 | 34 | GT-C1-08T-SF-NPT1 | 1" | NPT 1" | 96.5 | 56 | 41 | GT-C1-08T-SF-ZG1 | 1" | BSPP 1" | 96.5 | 56 | 41 | GT-C1-08T-SF-G1 | 1" | RC 1" | 96.5 | 56 | 41 | - - - - Nipple: - - - - Part Number | Body Size | Thread | L2 | L3 | D2 | CH2 | GT-C1-02T-PF-NPT1/4 | 1/4" | NPT 1/4" | 37.5 | 18.5 | 14.2 | 19 | GT-C1-02T-PF-ZG1/4 | 1/4" | BSPP 1/4" | 37.5 | 18.5 | 14.2 | 19 | GT-C1-02T-PF-G1/4 | 1/4" | RC 1/4" | 37.5 | 18.5 | 14.2 | 19 | GT-C1-03T-PF-NPT3/8 | 3/8" | NPT 3/8" | 40 | 22 | 19 | 24 | GT-C1-03T-PF-ZG3/8 | 3/8" | BSPP 3/8" | 40 | 22 | 19 | 24 | GT-C1-03T-PF-G3/8 | 3/8" | RC 3/8" | 40 | 22 | 19 | 24 | GT-C1-04T-PF-NPT1/2 | 1/2" | NPT 1/2" | 43.5 | 27 | 20.5 | 27 | GT-C1-04T-PF-ZG1/2 | 1/2" | BSPP 1/2" | 43.5 | 27 | 20.5 | 27 | GT-C1-04T-PF-G1/2 | 1/2" | RC 1/2" | 43.5 | 27 | 20.5 | 27 | GT-C1-06T-PF-NPT3/4 | 3/4" | NPT 3/4" | 53.5 | 32 | 28 | 34 | GT-C1-06T-PF-ZG3/4 | 3/4" | BSPP 3/4" | 53.5 | 32 | 28 | 34 | GT-C1-06T-PF-G3/4 | 3/4" | RC 3/4" | 53.5 | 32 | 28 | 34 | GT-C1-08T-PF-NPT1 | 1" | NPT 1" | 63 | 38 | 31.3 | 41 | GT-C1-08T-PF-ZG1 | 1" | BSPP 1" | 63 | 38 | 31.3 | 41 | GT-C1-08T-PF-G1 | 1" | RC 1" | 63 | 38 | 31.3 | 41 | - - - - Application: These feature a quality design most commonly used in agricultural applications; also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.

Our advantage: Competitive price Professional Packaging Produce according to Customers instruction Company Information: Yuyao Gute Pneumatic Hydraulic Component Co., Ltd locates in Simen Industrial zone Yuyao city covering 6500 square meter.

It launched in 1992, which is design, development, production and sales of quick couplings including hydraulic couplings, pneumatic couplings and pipe couplings.
