Full Automatic Four Roll Feeder Double Lines Cold Cutting T Shirt Bag Making Machine Supplier - China

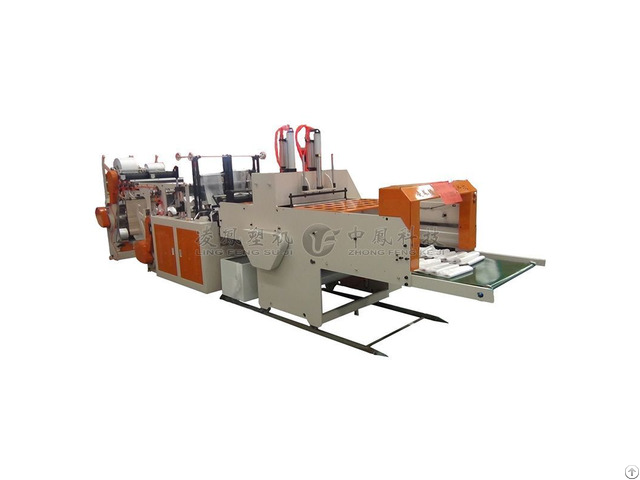

Full-automatic Four-roll Feeder Double Lines Cold Cutting T-shirt Bag Making Machine

Feature and Advantage

1 - Human touch screen, simple operation.

Bag length & speed can be changed easily from touch screen.

2 - Adopted our company's patent technology lift roll device and four-axis and two channels feeding together, greatly increase productivity.

3 - Unwind Stand equipped with inverter system for jumbo reels reduced the time and the number of employees of change roller.

4 - Equipped with specialized pneumatic Expandable Scroll fastens the film roller, easy operation

5 - Servo control step setting length system reduces the sealing-cutting dimensions errors during high-speed production and electric consumption.

6 - Cold cutter and sealing knife "turnover" device, easy for clean and maintenance, also ensure the safety.

7 - Equipped with circulatory auto-lubrication system service for drive train of cutting and sealing

8 - The machine adopted plugging type IC circuit auto-controlled system for easy replacement.

9 - Servo-motor accurately control Robot hand moment position

10 - In-line automatic punching machine use air pressure to push oil hydraulics without noise

Langfang Zhongfeng Mechanical Technology Co., Ltd. Is a Plastic Bag Making Machine Supplier.

Technology Paramete

Model No.

LF-4DP-320x2

The max width of the bag (mm) 320

The length of the bag (mm) 650

Bag making speed (pc/min) 100-260

Film thickness (mm) 0.02-0.08

Total power (kw) 18.64

Gas consumption (m3/min) 0.6

Bag making roll quantity (roll) 2

Dimensions(mm) 5370 x1340 x1890

Weight (kg) 2261

Main inverter power (kw) 1.5

Conveyer inverter power (kw) 4 x0.75

Inverter quantity (set) 5

Servo motor power (kw) 2.6

Servo motor quantity (set) 3

Pressure Cylinder Model KPB-63-165-20-3T

Pressure Cylinder 2

Work voltage (V) AC 220v
