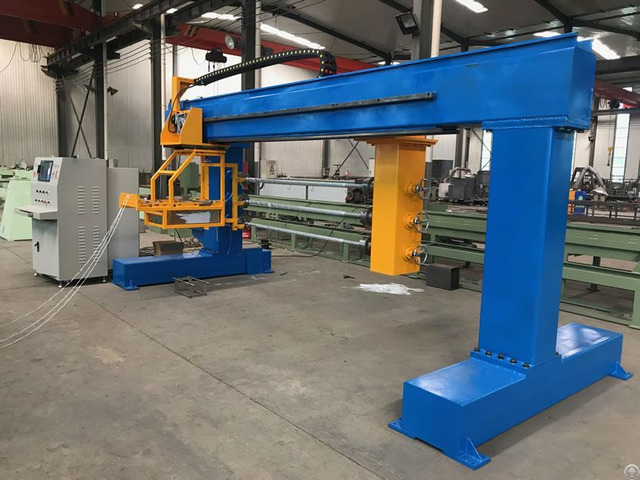

Gantry Type Winding Machine - China

Equipment name：(DN1-DN2)*L two-dimensional gantry-type winding machine Note: When ordering, please specify the range of DN1 (minimum diameter of product), DN2 (maximum diameter of product), L≤6000mm Equipment composition: gantry-type track, drive spindle, moving tailstock, winding trolley, dipping system, guide roving and creel.

Scope of application: It is suitable for the production of FRP pipes with diameter Ф10-1000mm and length not longer than 6000mm.

According to the user's requirements, the equipment can meet the production of unsaturated polyester resin and epoxy fiberglass pipe.

The equipment is suitable for production of pipes of different fiber types: ordinary glass fiber, carbon fiber, aramid fiber and basalt fiber Main parameters and characteristics: 1 - Product diameter: Ф10mm-Ф1000mm 2 - Product length: ≦6000mm 3 - Winding angle：≥45°≤89° (When the pins are hung on both ends of the mold, the winding machine can meet ≥0°≤90°) 4 - Roving-drawing speed：≤100m/min 5 - Main shaft speed：≤78rpm.

6 - Trolley speed：60m/min.

7 - Control method: Spindle, trolley dual servo + digital control system 8 - Resin tank: Equipped with heating function to meet the production of epoxy resin products 9 - Creel: Users can choose from the following three types according to different product requirements.

Simple tension creel Mechanical tension creel Electronic tension creel 10 - Total equipment power：15KW±5KW 11 - Equipment occupied area: Width: 10000mm, Length: 8600mm (The product length is 6000mm).

Company Contact:

• Posted By: Hengshui Fangchen FRP Equipment Technology Co., Ltd.

• Phone: 13303188070

• Address: No.6 east of Rubber Road, Northern Industry Area, Hengshui, Hebei, China., hengshui , hebei , China

• Email:

• Website: https://www.frp-machine.com

• Business Description: Hengshui Fangchen FRP Equipment Technology Co.,Ltd. is located in the beautiful National Wetland Nature Reserve - Hengshui Lake.

  The company has convenient transportation and advanced communication with Jingjiu Railway, Shide Railway, Daguang expressway and Shihuang expressway pass through.

  Our company is the member of China Composite Industry Association and specialized in producing FRP equipment high-tech enterprises.

  The main products are: micro-control FRP production line, process pipe production line; cable pipe wrapping equipment, vertical and horizontal storage tank winding equipment, septic tank winding equipment, heating pipe, insulation tube winding equipment; equipment FRP pultruded profiles and a variety of molds.

  The company has a large number of experienced mechanical engineers , glass craftworkers, electrical engineers, software engineers.

  The company establishes a complex team, which specializing in the development of FRP equipment, innovation and manufacturing.

  The company adheres to the road that the colleges combine with the enterprises , and we cooperate with Tsinghua University for a long-term.

  The company has developed the most advanced control system,which successfully produced a new generation micro-control wet winding FRP equipment.

  The technology has a leadership position in domestic counterparts.

  Our production has been sold throughout the country and achieved a good reputation.
