High Efficiency No Leakage Water Pump - China

PRODUCT OVERVIEW:

A latest-model fire-fighting equipment, XBC diesel engine fire-fighting pump group series are developed successfully, strictly complying with national standard-GB6245 2006 ‘Performance requirement and testing method of fire fighting pumps’ and with NEPA20 ‘Installation of centrifugal fire-fighting pumps’.

Classified by fitted ones (single stage single suction type, single, this equipment can fall into three sub-categories: XBC-IS, XBC-S and XBC-D The equipment are widely used in many occasions

Related diesel engine are classical domestic or imported ones, which have feature of stable starting, high capacity compact structure, easy maintenance and high automation, thus, they are fire-protection equipment with advanced and dependable performance.

STRUCTURE & FUNCTIONS:

X61 35, 12V1 35, 4102 4105, 61 02, 4100 495 etc diesel engines series provide power for our pumps.

Fire-fighting pump unit consist of fire-fighting pump and these diesel engines (also work with clutches), which is attached to high elastic clutches, besides diesel tank, radiation water tank, blower, control screen (for the automation unit) etc components.

Being the auto-control unit, a separate diesel engine auto-control cabinet (Programmable) carries out the system’s automatic starting, performance, auto-switching (the motor pump unit is switched to the diesel engine pump one or the diesel engine pump unit to another unit), auto-protection (warning and stopping protection for the diesel engine’s over-speed, lower oil pressure, high water temperature, three times of failures in starting, low voltage of accumulator warning etc functions) and also can be connected to fire fighting centers of users or the auto-warning device of fire with the purpose of remote monitoring.

In order To keep the unit working normally below 5°C, it can be fitted with an AC220V water-cooling pre-heater.

The diesel engine fire-fighting pump group can be formed as an automatic fire fighting ware-supply system(see tabel1), with an electric pump and pressure maintaining one, as you can read "Diesel engine control system".

The equipment can be jointly controlled with a fire-fighting center.

There are two water inlet ways: self-pouring and suction-up.

The former is preferred because of fire-protection standard.

If our clients specially ask for suction-up ones, they are required to point out so our company supply automatic vacuum water leading device.

However, the change of dimension of the pump unit is necessary.

PRODUCT OVERVIEW:

YW No-clogged sewage pump is a newly developed pump, based on the combination of the advanced technology from abroad and domestic features, which is good at energy-saving, anti-winding, no-clog, automatic installation and automatic control.

This pump is excellent in transporting water with solid-particles and long fiber contained

This pump has introduced special impeller structure and neo mechanical seals, to make it more efficient in delivering solid particles and long fiber contained water.

Compared with traditional impeller, the new impeller, with spiral-flow type or double-leaf type that has an excellent delivery capacity, together with suitable volute, can improve the performance of the pump, running smoothly without any vibration.

APPLICATIONS:

Sewage discharging of living plot

Sewage system of municipal works

Sewage system in factory and mine corporation

Waste water discharging of public facility

Unit to other water—discharging system

WORKING CONDITIONS:

Capacity Scope: 2--800m/h

Head Scope: 3—50m3

Medium temperature: -15~+60

Medium consistency: ≤1.3 X 103kg/m3

Rated Speed: 980—2900r/min Medium PH Scope: 5--9

System pressure: ≤0.6MPa

Rotation: Clockwise rotation viewed from motor

Company Contact:

• Posted By: Shanghai Kaiyuan Pump Industrial Co.,ltd

• Phone: 0086-021-37129015

• Address: No.9699 Puwei Hwy, Fengxian district, Shanghai, 201417, PR China, Shanghai , Shanghai , China

• Email:

• Website: http://www.kaiyuanpumps.com

• Business Description: Shanghai Kaiyuan Pump Industrial Co., Ltd. is one of the leading pump manufacturers in Shanghai, China, specializing in producing all kinds of water pumps with various and complete specifications.

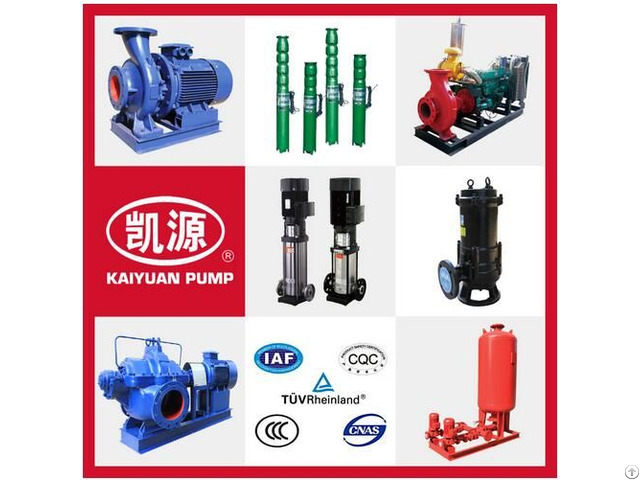

  Our product range:

  1 - fire pump

  2 - vertical multistage pump

  3 - submersible sewage pump

  4 - multistage centrifugal pump

  5 - deep well submersible water pump
