Machine Feature:

(1) The machine adopts fixed column type, horizontal bed and rotary table structure, with reasonable and compact layout, less occupation area and convenient hoisting and transportation.

(2) The basic large pieces are made of high quality gray cast iron, resin sand casting process, CNC processing, good accuracy and stability.

X, Y, Z three axis are adopted imported straight roller heavy load specifications guideway, bearing capacity and torsional resistance is strong, fast response speed, low speed characteristics.

(3) Equipped with imported high speed precision spindle, high speed, large output power, the spindle maximum speed of 8000rpm, suitable for high speed precision machining.

(4) Optimized design of three-axis servo drive, bidirectional pre-stretching positioning, dustproof seal on both sides of bearing, easy maintenance and adjustment.

(5) With indexable rotary table, accurate indexing positioning and indexing processing can be realized.

(6) Environment-friendly fully enclosed protection design for machine tools, stainless steel protective cover for XZ axis, stainless steel armor for Y axis, good performance of chip removal and protection.

(7) Double helix chip removal and chip liquid filtration, imported water pump, excellent cooling and chip removal effect.

(8) CNC adopts the latest control system with powerful functions, reliable performance and convenient operation.

Mechanical characteristics:

High rigidity

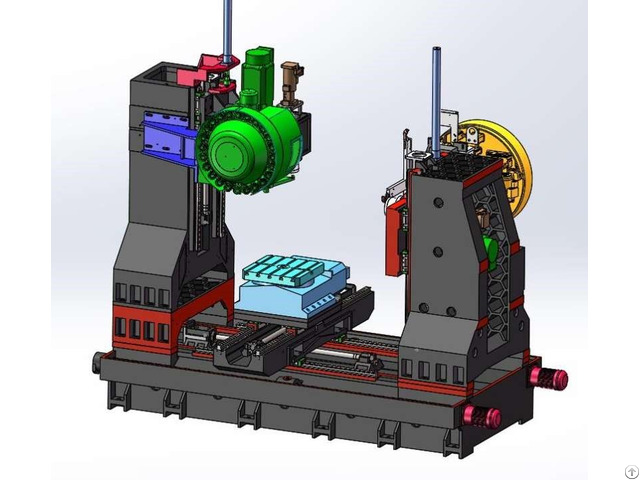

The overall layout of the machine tool is the "T" type structure of the movable column, and the foundational large pieces are all made of high quality gray cast iron resin sand casting technology.

The reasonable reinforcement is carried out according to the dynamic analysis to ensure that it has good anti-twisting and anti-bending ability.

Three linear coordinates using imported heavy - load linear roller guide rail pair, bearing capacity and strong anti - twisting ability.

Ball screw adopts pre-stretching high-precision screw with fixed support at both ends of screw.

The center bearing of the turntable adopts precision rolling bearing and strict pretightening, which increases the rigidity of the feed system.

High precision

The high rigidity of the large foundation of the machine tool guarantees the good accuracy and stability of the machine tool.

At the same time, three linear coordinates and one rotary coordinate of the machine tool (with imported high-precision grating ruler), so that the positioning precision and repeated positioning accuracy of the machine tool is further improved;

The whole structure adopts constant temperature oil tank for constant temperature cooling of the spindle, while the cooling nozzle at the front end of the spindle and the high pressure spray nozzle at the top of the fully enclosed protective cover for all-directional cooling of the cutter and the workpiece to prevent thermal deformation and ensure high precision.
