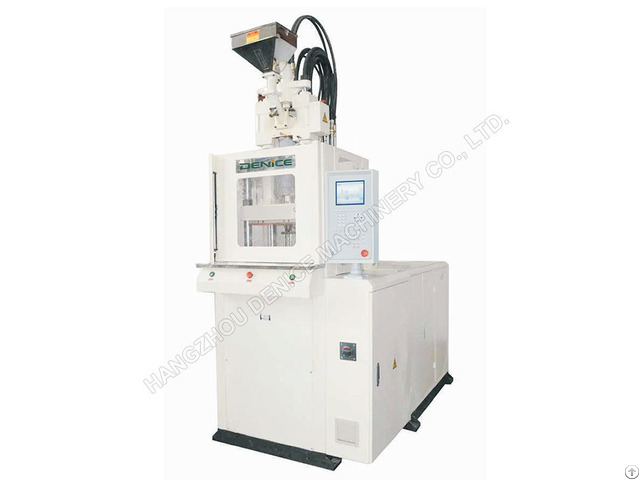

High Speed Injection Molding Machine Dv 600 Ce - China

high speed injection molding machine DV-600 - CE The CE series DENICE:

approved by the European Union, equipment collection area is designed with ergonomic design.

The safety protection devices in all parts are effective in preventing accidental accidents.

Specification of high speed injection molding machine

Model Unit DV-600

( Injection Unit ) Screw diameter mm Ф32 Ф36 Ф42 Maximum injection pressure Kg/cm2 1531 1210 1190 Theoretical shot volume cm3 97 122 194 Maximum shot weight(PS) g/Oz 89(3.1) 113(4.0) 176(6.3) Injection rate cm3/sec 55 70 109

( Clamping Unit ) Clamping force ton 60 tie bar distance mm 460× 310 Minimum mold thickness mm 200/300(Can be customized according to customer requirements) Opening stroke mm 250 Open daylight mm 450/550(As required) Ejector force T 1.7 Ejector stroke mm 45

( Others ) Pump motor power Kw 7.5 Hydraulic system pressure Kg/cm2 140 Barrel heating power Kw 5.55 Total wattage Kw 13.05 Oil tank capacity L 245 Machine weight (approx.

) T 2.2 Machine dimensions(approx.

) m 1.9×1.1× 2.9
