Jinan Acctek Pvc Wood Aluminum Iron Stainless Steel Copper Stone Cutting Cnc Router - China

price: 2400.00 Dollar US$

Jinan Acctek Pvc Wood Aluminum Iron Stainless Steel Copper Stone Cutting Cnc Router

Products Photos Catalog Jinan Acctek Pvc Wood Photos Catalog

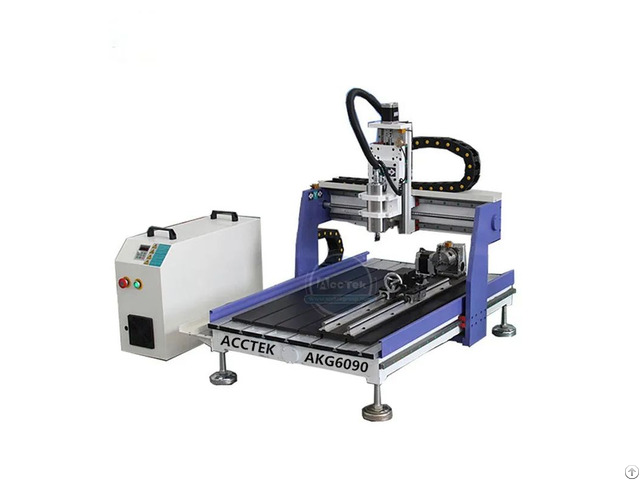

Cnc router machine akg6090

akg 6090 cnc router is the perfect choice for the home shop machinist, sign maker .

artist, engraver, panel maker.

metal and stone industry.

or educational institution who needs an affordable cnc router with 2d& 3d cad/cam machining capabilities.

the akg0609 cnc router is small enough to fit into almost any work space.

main features of mini wood cnc router akg6090: 1).

adopt constant power water-cooled frequency spindle high speed, low noise and long service life.

2).

it is very suitable for cnc hobby friends, small engraving shop and factories too.

3).

popular mach3 system is very simple for every buyer and beginner.

4).

even small, we still use 1.5kw spindle to give enough power.

ball screw gives it good resolution and less noise.

5).

separate japan servo motor and driver for each shaft, make the machine works more reliable.

description

parameter

x, y, z working area

600x900x200mm

table size

840x1180x750mm

x, y, z traveling positioning accuracy

±0.03/300mm

x, y, z repositioning positioning accuracy

±0.02mm

table surface

t-slot with clips

frame

cast iron frame

x, z structure

hiwin squire rails

y structure

linear bearings and ball screw

max.

power consumption

0.8kw

max.

rapid travel rate

6000mm/min

max.

working speed

4000mm/min

spindle power motor

1.5/2.2kw water cooling spindle

spindle speed

0-24000rpm

drive motors

stepper system

working voltage

ac220v/50/60hz

command language

g code

interface

usb

flash memory

128m

collet

er11/er20

x, y resolution

<0.01mm

software compatibility

wentai ;artcam, type3, artcut, option

running environment

temperature: 0℃～45℃

relative humidity: 30%～75%


Company Contact:


  • Phone: +086-0531-86160023

  • Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street, Jinan City, Shandong , China

  • Email: Email


Published date: March 5, 2023

  • Business Description: CNC Router,Auto Tool Changer Machine,3 Axis CNC Router,5&4 axis CNC Router,CNC Router For Stone,CNC Router For Metal,Multi heads CNC Router;CO2 Laser Machine,Fiber Laser Cutting Machine,Laser Marking Machine;Oscillating Knife
