Lead Edge Feeder Three Colors Printer Die Cutter Machine - China

price: 10000.00 Dollar US$

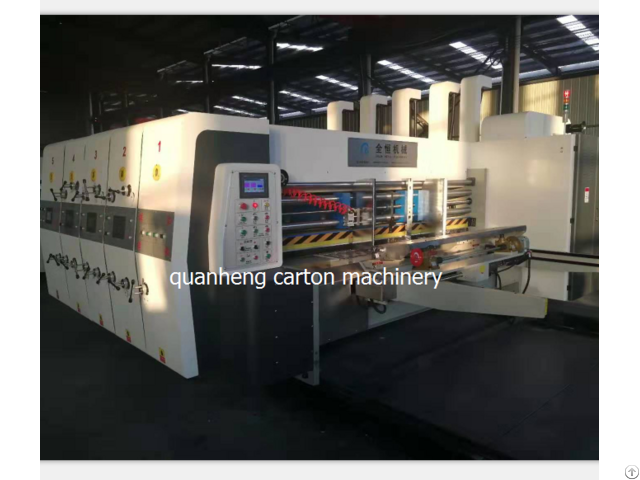

Lead Edge Feeder Three Colors Printer Die Cutter Machine

Products Photos Catalog Edge Feeder Colors Photos Catalog

型号

Model HY-C系列——1400*2500 *2900前缘三色印刷 切机

HY-C Series1400*2500*2900 Lead edge feeder Three colors Printer Die cutter machine

印刷颜色*门幅宽 度

Priter colors* Width 三色—2900mm型墙体 幅尺寸

Three colors---2900mm model (Door width of wall)

设计速度(张/分)

Design speed(sheet/min) 120 经济速度(张/分)

Economical speed(sheet/min) 100

墙体厚度(mm)

Wall thickness 50

齿轮厚度(mm)

Gear thickness (mm) 50

最大进纸尺寸(mm)

Maximum feed size (mm) 1400X2650

最小进纸尺寸(mm)

Minimum feed size (mm) 380X650

隔张送纸(mm)

Skip feeder (mm) 1600*2650

最大印刷面积(mm)

Maximum print size (mm) 1400X2500

标准印版厚度(mm)

Standard printing plate thickness (mm) 6

适应纸板厚度(mm)

Applicable paperboard thickness (mm) 2---12

纸板加工精度(mm)

Cardboard processing accuracy (mm) 印刷套色精度±0.5 切精度±1.5 Printing chromaticity accuracy ± 0.5 die cutting accuracy ± 1.5 Power in production (kw) ≥30


Company Contact:


  • Phone: +8618031716381

  • Address: dongguang country , cangzhou , hebei , China

  • Email: Email


Published date: December 17, 2019 - Modified date: December 17, 2019

  • Business Description: Cangzhou Quanheng Carton Machinery Co.,LTD

    we are a big manufacturer in china about the carton box making machine, printing machine etc,
