Marking And Cutting Machine For Angles Model Jx2020 - China

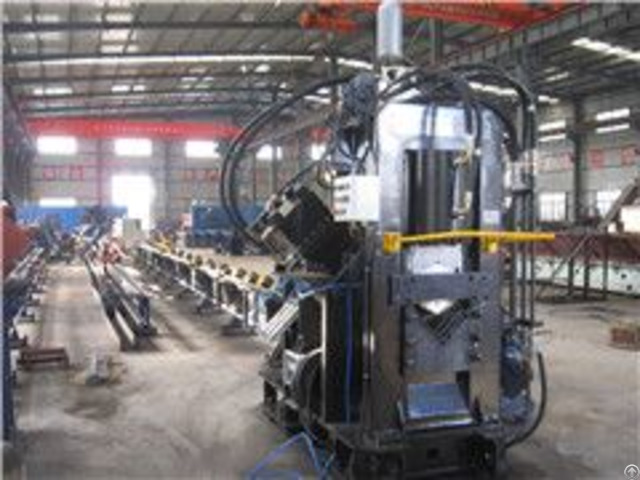

CNC Punching, Marking And Cutting Machine For Angles Model JX2020, automatic angle punching processing line, Angle Machine, Angle Marking Machine, CNC Machine for Steel Tower DETAILS:

High-performance all-round machine with extraordinary value, but at a very economical price.

CNC technology with servo motors in X/Y/Z three axes.

Integrated with hydraulic, pneumatic and mechanical elements, which are imported world-class components.

Easy programing- can directly use the program data by sample software.

With function of self-diagnostic for failures.

Displaying the drawing of workpieces.

APPLICABLE INDUSTRY: The machine is specially used for angle steel marking, punching and cutting mainly in the field of power and telecommunication industry.

ADVANTAGES:

The angle processing line JX2020 of marking, punching and cutting are all in automatic completeness.

The angle processing line JX2020 punching force is 1100KN.

The angle line machine larger punching force can ensure better punching quality.

The angle punching machine cutting force is 1800KN.

The larger cutting force, the better cutting quality.

The angle processing line marking unit adopts rigid and compact structure.

Marking stadia can be set at will such as with infinite punching rows.

This angle line machine support and pressing device meets the requirements of processing angles with bigger bending.

The structure of the upper and nether clamp improves the rigidity of the clamp and clamping rod.

When editing, only need to input angles size, hole diameters, positions, and quantities by using CAD/CAM directly conversion.

All finished angles can be unloaded by pneumatic turnover device.

★ All of these models can be customized according to customer requirements.

Model JX2020 JX1412 JX80 JX70

Angle Size (mm) 45*45*4~200*200*20 (Q345) 40*40*3~140*140*12 (Q345) 40*40*3~80*80*8 (Q345) 35*35*3~70*70*6 (Q345)

Max.

Workpiece Length (m) 14 12 12 9

Max.

Punching Capability (D*T) (mm) Φ26x20 Φ26x12 Φ26*8 Φ22*6

Punching Force (kN) 1100 630 400 200

Marking Force (kN) 1030／700 1030／700 700 200

Cutting Force (kN) 1800 Double Cutting 900 Double Cutting 630 Single Cutting 450 Single Cutting 4000 Single Cutting 1600 Single Cutting NO.

of Character Group (Piece) 4 4 4 12 (option)

No.

of Character in Each Character Group (Piece) 12/18 12/18 12/18 Character Size (mm) 14*10*20 By Customer’s Request

Range of Stadia (mm) 20~170 (stepless) 18~110 (stepless) 18~60 (stepless) 17~46 (stepless)

CNC Axes (Piece) 3 1

Feeding Speed of Angle (m/mm) 40

Programming Mode Input by Keyboard, RS232 interface, floppy disk and USB interface.

Overall Dimension (m) 32*7*2.6 23*7*2.4 22*6*1.8 17*6*1.6

Total Power (kW) 43.5 Net Weight (kg) 20000 16000 13000 7000 ★ All of these models can be customized according to customer requirements.

Hot Sale cnc machine for drilling, punching, milling, shearing, sawing, bending, roll forming, hole processing.

The Machine is used for Plate, Angle, Flange, Connection Boards.

For more product information, please visit our website.
