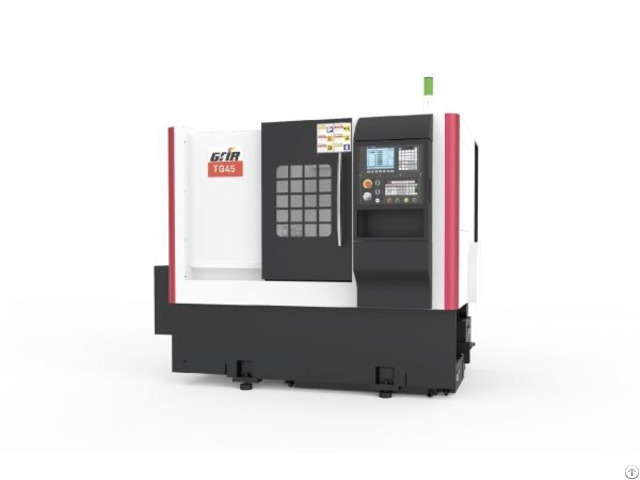

Mechatronic Design Large Stroke Small Volume Compact Structure Cnc Flat Bed Lathe - China

Machine Feature 1 - Adopt the overall inclined bed base of 45° structure, the bed has a large cross-sectional area, which greatly improves the rigidity of the whole machine.

360mm X-axis/Z-axis travel can provide more space for tool installation.

The large span of the guide rail makes the cutting process more stable.

The rotation diameter of up to Φ400 makes the special-shaped parts and compound processing more convenient; 2 - Mechatronic design, large stroke, small volume, compact structure, elegant appearance; 　

　　　

3 - Optional eight-station rotary turret, ER20 single-axis power head, self-made dual-axis ER20 lifting power head and square power head can be used to complete the process of turning, milling, drilling, tapping and polygon cutting at a time; 4 - The structure of the spindle is the front three rear two angle contact bearing, the diameter of the through hole is Φ43; 5 - The vertical and horizontal driving adopts high-performance AC servo motor, X-direction ball screw adopts pre-stretch structure design, adopts C3 level accuracy, high positioning accuracy, flexible and reliable action; 6 - Adopt automatic centralized lubrication device, the lubrication is fully reliable; 7 - The cooling and chip removal system uses a floor-separated water tank and an iron chip box (the side and rear chip removal devices can also be selected), which is convenient for cleaning.
