Mixed Co2 Laser Cutting Machine For Metal Sheet And Nonmetal Wood - China

price: 2400.00 Dollar US$

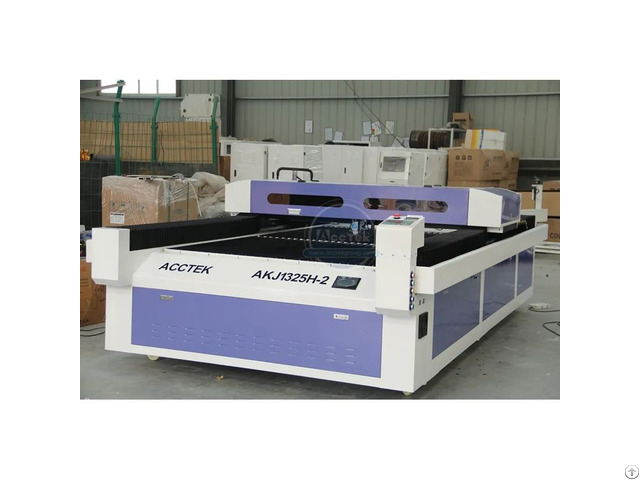

Mixed Co2 Laser Cutting Machine For Metal Sheet And Nonmetal Wood

Products Photos Catalog Mixed Laser Cutting Photos Catalog

Product Description

Main Features of metal cnc laser cutting machine:

1).

Mixed-cut: metal steel such as stainless steel, carbon steel, and nonmetal such as acrylic, wood, etc.

2).

High precision: X/Y axis adopt Leadshine servo motor with high precision belt transmission, improve the response speed and cutting precision, extend service life.

3).

Good stability: optimized the nc system control, it can meet the precision parts processing, stable dynamic performance, also can work for long hours.

4).

The cutting section with good quality: mechanical follow-up cutting head system, cutting head always follows the material to keep the cutting point locaation unchanged, which insures smooth cutting section without processing again.

It can adopt to flat or curved surface sheet cutting.

5).

Adopt sealed co2 laser tube, main consumable items are electric energy, water cooling, auxiliary gas and laser light.

6).

Simple structure, easy operation, stable laser device and low maintenance cost.

Model

CO2 laser cutting/carving machine AKJ1325H-2

Working area

1300*2500mm

Laser power

130W/150W/180W/280W/30 0W RECI and EFR 60w laser tube

Laser type

CO2 laser tube, CW-3000/CW-5200 water-cooling

Engraving speed

0-50000mm/min

Cutting speed

0-20000mm/min

Power supply

AC380/220V/50/60HZ

Position accuracy

0.01mm

Repetition accuracy

0.02mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Guide rail

Taiwan high accuracy linear guider rails from Taiwan

Transmission method

Belt transmission(Ball screw transmission is optional)

Software supported

CorelDraw, PhotoShop, AutoCAD, TAJIMA

Driving system

Stepper motor and Leadshine 583 driver

Controlling software

RUIDA/Leetro system

Mirrors and lens

Singapore mirrors and lens

Belt

SHANGHAI FULONG(Germany roulunos is optional)

Net Weight

650kg

Optional part

Red light pointer, up and down table, Rotary with chuck, Packing

Plywood box


Company Contact:


  • Phone: +086-0531-86160023

  • Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street, Jinan City, Shandong , China

  • Email: Email


Published date: May 7, 2023

  • Business Description: CNC Router,Auto Tool Changer Machine,3 Axis CNC Router,5&4 axis CNC Router,CNC Router For Stone,CNC Router For Metal,Multi heads CNC Router;CO2 Laser Machine,Fiber Laser Cutting Machine,Laser Marking Machine;Oscillating Knife
