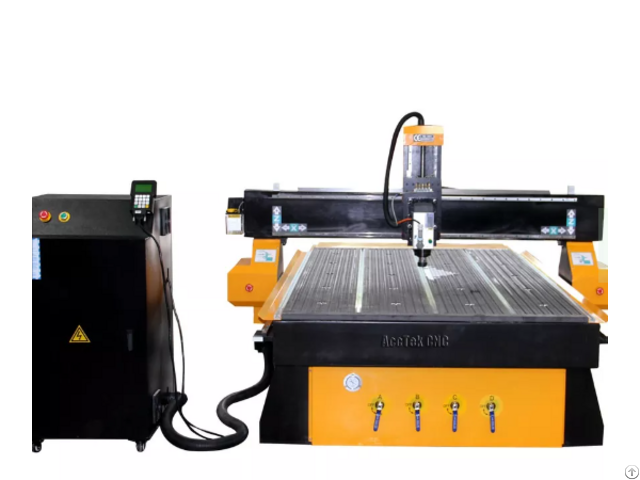

Multifunction 1325 3d Cnc Router Machine For Wood Metal Stone Stainless - China
price: 4200.00 Dollar US$
1 - It is widely used for production of cynlinder wood sculpture, wood legs, 3D relief of wood cabinet door, solid wooden door, computer desk, assembling furniture and large area and mass engraving on MDF and HDF, wood board, plane cutting, 3D embossment, etc.
2 - Tool sensor enables the machine compensate the tolerance of the tool length.
3 - Mach3 control system, separated keyboard control, color LCD display, 20mm Hiwin linear guide rail and TBI ball screw from Taiwan.
Model Name AKM1325 2 X Y Z working area 1300*2500*200mm 3 Whole structure High bed and Cost iron structure 4 Table surface T-slot table with PVC/ vacuum table optional 5 Movement parts XY axis gear transmission, helical rack 1.25M, Hiwin 20# Rail Linear, Z axis Taiwan TBI Ball screw transmition 6 Spindle 3.2 kw water cooling spindle/optional 7 Spindle speed 24000 RPM 8 Drive Motor Leadshine M860 driver 9 Max.
Rapid Travel Rate 33000 mm/min 10 Max.
Working speed 25000mm/min 11 Control System Mach3 controller with USB port 12 Software Type3, Artcam, Ucancam 13 Machine precision ±0.01mm 14 Repositioning precision ±0.03mm 15 Command language G code 16 Working Voltage AC380V/50/60Hz, 3PH (Option: 22 17 Machine Size 1630*1840*1640mm 18 Package size 1960*1760*1800mm 19 Weight 400kg/550kg(net/gross) 20 Dust Collector Optional 21 Color Blue-white/optional 22 Operating System Mach3 PC Software with USB port 23 Computer Interface USB
24 Flash Memory 128M(U Disk)
25 Collet ER25
26 X, Y Resolution <0.01mm
27 Software Compatibility Type3/UcancameV9/Artcam Software
28 Running Environment Temperature 0 - 45 Centigrade
29 Relative Humidity 30% - 75%
Company Contact:
- Posted By: ACCTEK
- Phone: +086-0531-86160023
- Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street, Jinan City, Shandong , China
- Email:
- Website: https://www.acctekgroup.com
Published date: December 17, 2022
- Business Description: CNC Router,Auto Tool Changer Machine,3 Axis CNC Router,5&4 axis CNC Router,CNC Router For Stone,CNC Router For Metal,Multi heads CNC Router;CO2 Laser Machine,Fiber Laser Cutting Machine,Laser Marking Machine;Oscillating Knife
