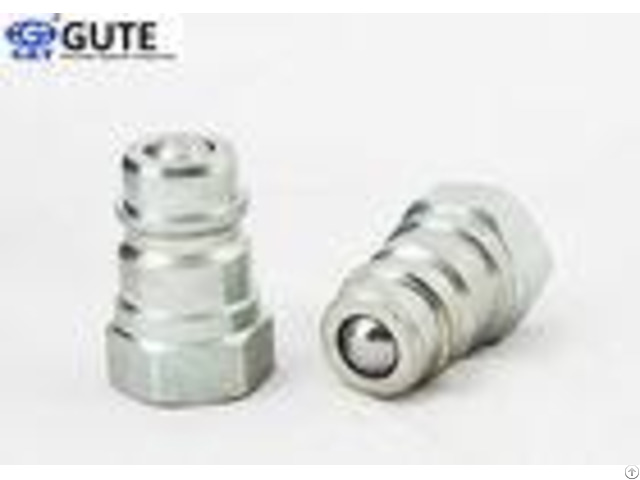

Nptf Thread Agricultural Hydraulic Quick Disconnects 3 4 Inch With Cnc Machining Technics - China

GT-C1-06 3/4" ISO steel NPTF thread agricultural hydraulic quick disconnects Feature: 1 - Poppet valves open automatically when coupled, within rated working pressure, to keep the expedite flowing.

2 - Hard, chrome alloy balls are used for valving, It be loaded on the valve seat by the springs.

3 - The valve provides a metal-to-metal seal between the ball and coined seat.

4 - Critical parts are hardened for durability.

5 - GT-C1 Series conforms to the standard of ISO5675 - Compatible withDixon: AG-Series PioneerParker: 4000 SeriesFaster: NS Coupler: - - - - Part Number | Body Size | Thread | L1 | D1 | CH1 | GT-C1-02T-SF-NPT1/4 | 1/4" | NPT 1/4" | 53.5 | 27.5 | 19 | GT-C1-02T-SF-ZG1/4 | 1/4" | BSPP 1/4" | 53.5 | 27.5 | 19 | GT-C1-02T-SF-G1/4 | 1/4" | RC 1/4" | 53.5 | 27.5 | 19 | GT-C1-03T-SF-NPT3/8 | 3/8" | NPT 3/8" | 63 | 34 | 24 | GT-C1-03T-SF-ZG3/8 | 3/8" | BSPP 3/8" | 63 | 34 | 24 | GT-C1-03T-SF-G3/8 | 3/8" | RC 3/8" | 63 | 34 | 24 | GT-C1-04T-SF-NPT1/2 | 1/2" | NPT 1/2" | 66.5 | 38.5 | 27 | GT-C1-04T-SF-ZG1/2 | 1/2" | BSPP 1/2" | 66.5 | 38.5 | 27 | GT-C1-04T-SF-G1/2 | 1/2" | RC 1/2" | 66.5 | 38.5 | 27 | GT-C1-06T-SF-NPT3/4 | 3/4" | NPT 3/4" | 82 | 48 | 34 | GT-C1-06T-SF-ZG3/4 | 3/4" | BSPP 3/4" | 82 | 48 | 34 | GT-C1-06T-SF-G3/4 | 3/4" | RC 3/4" | 82 | 48 | 34 | GT-C1-08T-SF-NPT1 | 1" | NPT 1" | 96.5 | 56 | 41 | GT-C1-08T-SF-ZG1 | 1" | BSPP 1" | 96.5 | 56 | 41 | GT-C1-08T-SF-G1 | 1" | RC 1" | 96.5 | 56 | 41 | - - - - Nipple: - - - - Part Number | Body Size | Thread | L2 | L3 | D2 | CH2 | GT-C1-02T-PF-NPT1/4 | 1/4" | NPT 1/4" | 37.5 | 18.5 | 14.2 | 19 | GT-C1-02T-PF-ZG1/4 | 1/4" | BSPP 1/4" | 37.5 | 18.5 | 14.2 | 19 | GT-C1-02T-PF-G1/4 | 1/4" | RC 1/4" | 37.5 | 18.5 | 14.2 | 19 | GT-C1-03T-PF-NPT3/8 | 3/8" | NPT 3/8" | 40 | 22 | 19 | 24 | GT-C1-03T-PF-ZG3/8 | 3/8" | BSPP 3/8" | 40 | 22 | 19 | 24 | GT-C1-03T-PF-G3/8 | 3/8" | RC 3/8" | 40 | 22 | 19 | 24 | GT-C1-04T-PF-NPT1/2 | 1/2" | NPT 1/2" | 43.5 | 27 | 20.5 | 27 | GT-C1-04T-PF-ZG1/2 | 1/2" | BSPP 1/2" | 43.5 | 27 | 20.5 | 27 | GT-C1-04T-PF-G1/2 | 1/2" | RC 1/2" | 43.5 | 27 | 20.5 | 27 | GT-C1-06T-PF-NPT3/4 | 3/4" | NPT 3/4" | 53.5 | 32 | 28 | 34 | GT-C1-06T-PF-ZG3/4 | 3/4" | BSPP 3/4" | 53.5 | 32 | 28 | 34 | GT-C1-06T-PF-G3/4 | 3/4" | RC 3/4" | 53.5 | 32 | 28 | 34 | GT-C1-08T-PF-NPT1 | 1" | NPT 1" | 63 | 38 | 31.3 | 41 | GT-C1-08T-PF-ZG1 | 1" | BSPP 1" | 63 | 38 | 31.3 | 41 | GT-C1-08T-PF-G1 | 1" | RC 1" | 63 | 38 | 31.3 | 41 | - - - - Application: These feature a quality design most commonly used in agricultural applications; also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.

Our advantage: Competitive price Professional Packaging Produce according to Customers instruction Company Information: Yuyao Gute Pneumatic Hydraulic Component Co., Ltd locates in Simen Industrial zone Yuyao city covering 6500 square meter.

It launched in 1992, which is design, development, production and sales of quick couplings including hydraulic couplings, pneumatic couplings and pipe couplings.
