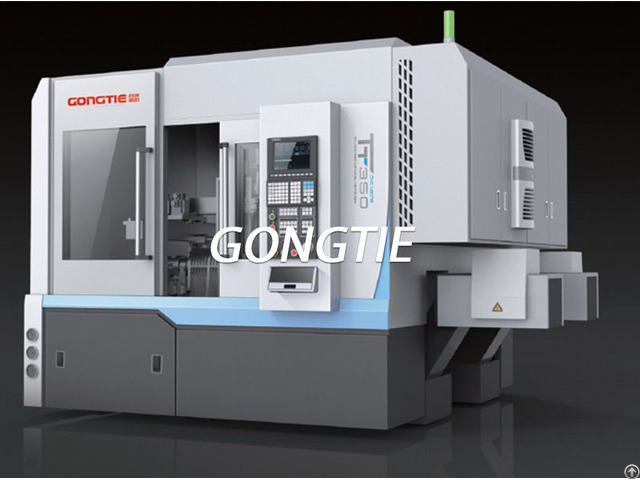

M series-precise linear guide-way turning center with 5 axis is a new high-end model we just approached, that integrating the compound processing competence like turning, milling, drilling and tapping as one set.

*BODY-With international advanced vertical bed body structure in 90º, and with custom-made excellent resin sand and die-casting at a whole, strict thermal aging treatment, to make sure the high stiffness.

* SPINDLE- High precision and sleeve-style independent spindle structure, and high speed hydraulic swing system, to guarantee the high rotating speed.

* High precision linear guide-way and ball screw, with central and pre-stretching ball screw assembly method, for realizing the precise turning with tolerance of µ level.

*With 90º vertical bed body structure, will bring more processing space, and the chips-removing capability will be better.

* The effective utilization with the 4 axis accurate linkage and compound cutters can realize the turning, milling, drilling and tapping so on technology processing at one time finishing .

*The fifth axis configuration for the vice-spindle or tailstock spindle makes the M-series turning center' function be stronger.

ain parameters Unit M25 M36 M350 MAX cutting diameter mm φ300 φ300 φ300 Max.

turning length mm 330 330 330 Max.

bar through-hole mm 21(25) 26(35) 40 Axis Stroke X-axis travel mm 230 230 230 Z-axis travel mm 330 330 330 Y-axis travel mm 420 420 420 W1-axis travel mm 250 250 250 W2-axis travel mm 310 310 310

Rapid Traverse X//Z/Y/W1/W2-axis m/min 20 20 20

main

spindle Spindle nose size N/A A2-4 A2-5 A2-5 servo motor power kW 3.7/5.5 3.7/5.5 5.5/7.5 Spindle speed range rpm 0～5500 0～5000 0～4500 Work piece clamping method 25 collet(4'hydraulic chuck) 36collet(5'hydraulic chuck 42 collet

(6'hydraulic chuck)

secondary

spindle spindle nose size N/A A2-4 A2-4 A2-4 servo motor power kW 3.7KW 3.7KW 3.7KW Spindle speed range rpm 0～5000 0～5000 0～5000 Spindle speed range CR30A4 CR30A4 CR30A4

tail stock tail travel mm 100 100 100 tail collet diameter mm φ80 φ80 φ80 taper type N/A MT4 MT4 MT4

quantites of tools tool number 5(10) 5(10) 5(10) tool pattern 4(8) 4(8) 4(8) radial direction tool number 3 3 3 axial direction tool number 3 3 3

tool board tool board pattern combined tool combined tool combined tool central height of radialcircle mm 70 70 70 standard square size of

the out cutting tool mm 16*16 16*16 16*16 diameter of the boring rod mm 25 25 25

Accuracy X\Z axis repeating postioning accuracy mm 0.002 0.002 0.002

Others Cooling motor L 120 120 120 hydraulic oil tank capacity L 60 60 60 Required electric power kVA 20 20 20 Height from floor to spindle center mm ≈1010 ≈1010 ≈1010 Overall size(L*W*H) mm 1950*1850*1950 1950*1850*1950 1950*1850*1950 Net weight kg ≈2600 ≈2700 ≈2800

standard： tool box, instruction, manual, cooling system, lighting system, lubricating system.

hydraulic chuck.

optional ：foot switch, programmable blowing function, precision C-axial division, living tool, auto door, loading & unloading system, industrial robot, auto bar feeder, parts catching device, chip conveyor, auto detecting system, auto tool compensation system, high pressure cooling system As a cnc lathe machine exporter with high duty one pulley precision lathe, our machine has Optional parts, for example, collet, chuck, foot switch, programmable blowing function, precision C-axial division, living tool.
