Professional Manufacture Industry Fiber Laser Metal Cutting Machine - China

Mains Features of steel copper aluminum cutter closed cnc fiber laser cutting machine Safety and no pollution * With a fully enclosed design;

* The observation window adopts an European CE Standard laser protective glass;

* The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

* The weight of machine is 7500kg.

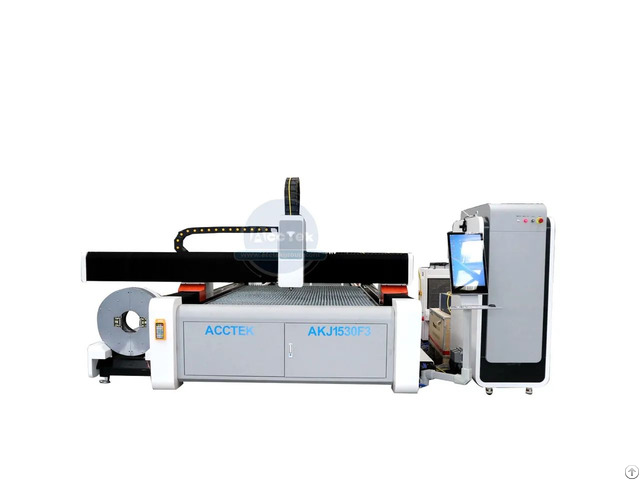

Feature of AKJ1530F3 steel copper aluminum cutter closed cnc fiber laser cutting machine THE THIRD GENERATION AVIATION ALUMINUM GANTRY

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding.

After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

THE SEGMENTED RECTANGULAR TUBE WELDED BED

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.

Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

WITHOUT MANUAL FOCUSING

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness.

The speed of automatically adjusting focus lens is ten times of the manual adjusting.

BIGGER ADJUSTMENT RANGE

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

LONG SERVICE LIFE

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Machine model AKJ1530FR

Laser power 1000W 2000W 3000W 4000W 6000W 8000W(Optional)

Dimensions 5425*3150*2530mm

Working area 3000mm x 1500mm

Repeat positioning accuracy ±0.02mm

Maximum speed 120m/min

Max.

acceleration 1.5G

Voltage and frequency 380V 50Hz/60HZ
