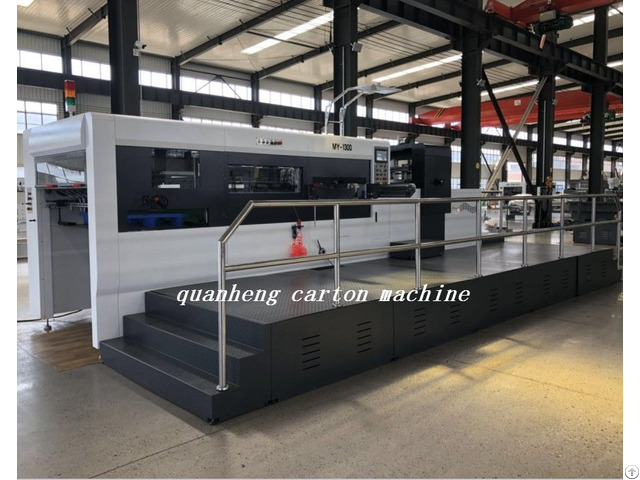

Qh 1650 Automatic Die Cutting And Creasing Machine With Stripping - China

Lead edge paper feeding unit:

The front plate can be adjusted up and down according to different paper thickness.

Automatic adjustment of both sides of the plate, can quickly adjust the paper width in place, can also be used for position fine-tuning.

Equipped with high pressure blower, air volume separate frequency control.

New up graded lead edge feeder, more accurate and positive feeding, greatly increasing the paper adaptability.

Die-cutting unit:

Crankshaft connecting rod type high precision plane movable die-cutting table.

High stability upper platen fixed die-cutting table.

High quality precision worm gear and the synchronous belt perfect combination of transmission, smooth and durable.

High torque pneumatic clutch/break.

Famous brand multi cam intermittent transmission mechanism, improve machine life.

High quality torque clutch protects INDEX from injury.

Bevel pressure trimming device, the overall adjustment pressure range is + 1.5mm.

High quality, imported pre-stretched gripper bar driving chain Ensure the accuracy of the machine.

Stripping disposal agency:

The upper and lower frames are link work stripping device, which is stable, accurate and powerful.

Stripping plate adopts Yin-Yang form work.

The central positioning device makes changing plate more convenient and save time.

Upper frame lifting with electric.

Delivery unit:

The way of taking up Paper lifting Table with Roller bracket prevents the cardboard surface from being scratched during the paper delivery process.

The whole stacking paper or counting belt output is convenient and quick.

The adjustable spring chain buffers the driven wheel after tightening, which greatly reduces the inertial impact of the gripper row steering and maintains the equilibrium tension of the chain.

Main specification:

Die cutting style flat to flat

Max.

paper size 1650mm×1200mm 3, Min.

paper size 650mm×500mm

Max.

Die-cutting size 1630mm×1180mm Max.

Die-cutting pressure 450T

Paper processed cardboard 0.7mm-9mm Waste paper edge Min.

10mm

Max.

Die-cutting speed 5000sheets/h Bite paper edge Min.

6mm

Power 18.5KW

Total power(kw) 35kw Voltage 380V, 3PH, 50/60HZ Gross weight 41 tons

Dimensions (L*W*H)9010*3465*2458mm
