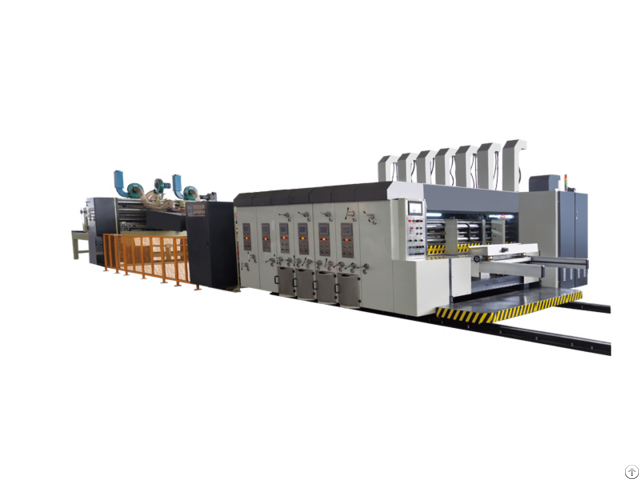

Qh Lead Feeder Printing Slotter Die Cutter With Folder Gluer Inline Machine - China
price: contact company for price
序号
Number 参数名称
Parameter name 单位
Unit 规格
Specification
1 机械内侧宽度
Mechanical inside width mm 3000
2 设 计 速 度 Design speed 米/分
m/min 300
3 经济运行速度 Economic speed 米/分
m/min 250
4 最大进纸尺寸
Maximum paper feed size mm 1200×2400
5 最小进纸尺寸
Minimum paper feed size mm 350×800
6 纸板厚度
Paperboard thickness mm 2-10
7 粘箱误差 Sticky box error mm ±2
8 粘箱剪刀口误差
Sticky box scissors mouth error mm ±1.5
9 总电机功率
Total motor power kw 35
10 体积长宽高
Dimension mm 15000x4500x3200
Company Contact:
- Posted By: cangzhou carton machinery
- Phone: +8618031716381
- Address: dongguang country , cangzhou , hebei , China
- Email:
- Website: http://www.qh-pack.cn/
Published date: December 26, 2019
- Business Description: Cangzhou Quanheng Carton Machinery Co.,LTD
we are a big manufacturer in china about the carton box making machine, printing machine etc,
