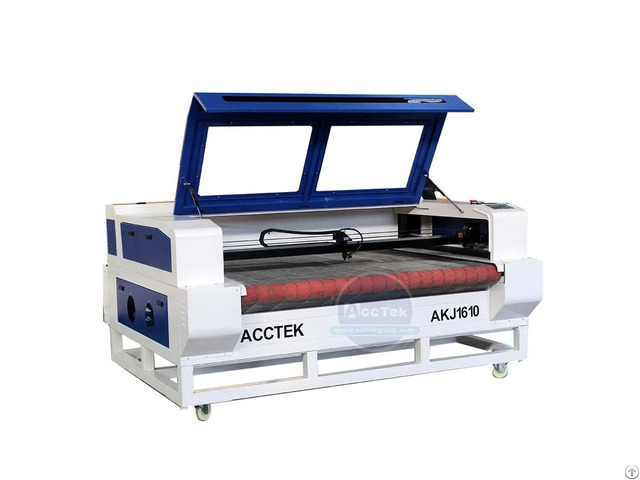

Roll Fabric Cnc Laser Cutting Machine Textile Auto Feeding - China

Main Features of auto feeding laser machine 1610 roll fabric textile leather cutting machine: 1 - Autofeeding system, apply netted platform with special design, very convenient for free movement of processing pieces.

2 - Big size to meet large format cutting.

3 - Control system with USB interface.

4 - machine is the double-head auto feeding laser cutting machine which is independently researched and

improved by bodor, it is one high speed and scientific auto feeding device .

After improvement, it achieves, it achieves to keep on working and collecting material automatically, and make sure the integrity of material at same time.

5 - with electric laser head that can move freely, you could adjust distance between two heads according your needs.

It is no need to move by hand any more .

Each head can finish whole format processing work independently.

6 - Sample structure, easy operation, stable laser device and low maintenance cost.

Graphic format support: PLT, DXF, BMP, JPG, AI etc Support AutoCAD, CorelDraw, Photoshop output directly.

Technical parameters: No Description Parameter 1 Name AKJ1610 with auto feeding system

2 Working area 1600 x 1000mm

3 Working table Auto feeding unit

4 Laser power 90w/100w/130w/180w/280w/3 00w optional

5 Controller Ruida 6442s controller

6 Driver Leadshine 583

7 Motor Stepper motor

8 Belt Fulong belt

9 Lens Singapore mirrors and lens

10 Rails High speed linear guide rails

11 Engraving speed 0 – 60000 mm/min

12 Reposition accuracy ±0.1mm

13 Working voltage AC110- 220V±10%, 50-60Hz

14 Consuming power <1, 000W

15 Working temperature 0 - 45°C

16 Working humidity 8 - 95%

17 Minimum letter siz English : 1 x 1mm Chinese: 2 x 2mm 18 Supported file format BMP, HPGL, PLT, DST, DXP, and AI

19 Laser tube cooling type Water pump

20 Other auxiliary equipment Air Fun

21 Compatible software RDCAM, CorelDraw AutoCAD Photoshop

22 Laser tube type CO2 glass laser tube

23 N.

W/G.

W 500kg/580kg

24 Packing Dimension 2140*1540*1120mm
