Sanxp B Industrial Roll Slitting Rewinder - China

price: 15000.00 Dollar US$

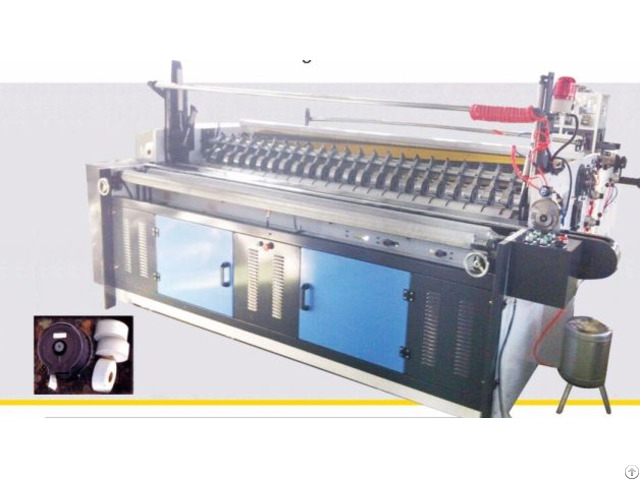

Sanxp B Industrial Roll Slitting Rewinder

Products Photos Catalog Sanxp Industrial Roll Photos Catalog

SANXP-B Industrial Roll Slitting Rewinder can make both industrial paper roll and rolled hand towel and the switch can be done in a short time.

The machine is set with pneumatic roll loading, belt driving, tension control and air shaft, enabling edge embossing, perforating, slitting and rewinding at one time.

Main features:

1 - Air shaft is used to rewind the finished products with high location accuracy.

2 - Edge Embossing Unit: Adopts steel to steel edge embossing, independent cylinder control to avoid paper separating.

3 - Horizontal unwinding unit with pneumatic paper roll loading and wide belt paper transmission is set with individual tension control unit for each jumbo roll.

4 - Frontal and back inching switch is set to drive the paper to make easier and safer operation.

5 - Optional sealing function can be added to the customer’s requirement.

Machine Model 1575 1880 2400 2600 3150 3500

Raw Material Width(mm) 1800 2100 2400 2500 3000 3500

Finished roll diameter 90-300mm

Raw material diameter 1100mm

Perforation pitch 90-160mm

Speed 180-200 m/min

Pneumatic System 3 HP air compressor

Power 4.5-11KW

Dimension 6200*2600*1800-6200*4000* 1800mm

Calendering unit Steel to steel, steel to rubber


Company Contact:


  • Phone: 86-532-55570881

  • Address: 2208 No.33 Lianyungang Road, Qingdao,China, qingdao , shandong , China

  • Email: Email

Published date: July 10, 2017

  • Business Description: San Machinery is a 11-year gold supplier of paper converting machine.

    Covering an area of over 30 countries and regions , products of San Machinery have been widely recognized as with good quality and competitive price.
