Semi-Automatic CNC Hydraulic Punching And Marking Machine For Angle Model YC160, Angle Machine, Angle Marking Machine, CNC Machine for Steel Tower

APPLICABLE INDUSTRY: The machine is the semi automatic special equipment used for angle steel marking & punching mainly in the field of angle steel tower industry.

COMPOSITION:

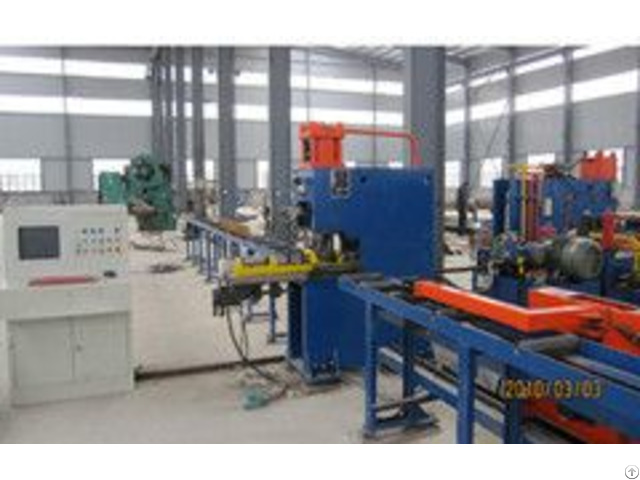

This machine is mainly composed of infeeding conveyor, NC infeed carriage, punching unit, marking unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.

ADVANTAGES:

High-performance all-round machine with extraordinary value, but at a very economical price.

CNC technology with servo motors in feeding.

Integrated with hydraulic, pneumatic and mechanical elements, which are imported world-class components.

Easy programming- can directly use the program data by sample software.

When editing, only need to input angles size, hole diameters, positions, and quantities by using CAD/CAM directly conversion.

With function of self-diagnostic for failures.

Two gradient unloading units are used for preventing angles form being lifted by punching head.

Displaying the drawing of workpieces.

With self-diagnosis failure function.

★ All of these models can be customized according to customer requirements.

Model YC160 YC200

Functions Punching & marking

Angle Size (mm) 40*40*3～160*160*14 40* 40*3～200*200*16

Max.

Punching (Diameter * Thickness) (mm) Φ26х14 Φ26х16

Punching Force (kN) 1000 1000

Marking Force (kN) 1000 1000

Max.

Length Of Finished (m) 8 8

3 Stations 2 stations for punching, & 1 station for marking Marking Letters 12

Dimension Of Letter (mm) 14*10*20 By Customers’ Request

CNC Axes 2

Feeding Speed Of Angle (m/min) 60 60

Processing Precision Accordance with GB2694

Punching Back Mark Side length≥40-63 Back mark≥20 Back mark≥20 ≥70-100 ≥32 ≥32 ≥110-125 ≥42 ≥42 ≥140-160 ≥50 ≥50

Program Function Real time fault display

Programming Mode Input by keyboard, RS232 interface, floppy disk and USB interface

Program Function Error display

Overall dimension L*W*H (mm) 18900*2300*2600 22500*600*1800

Net Weight (kg) 5500 11000 ★ All of these models can be customized according to customer requirements.

Hot Sale cnc machine for drilling, punching, milling, shearing, sawing, bending, roll forming, hole processing.

The Machine is used for Plate, Angle, Flange, Connection Boards.
