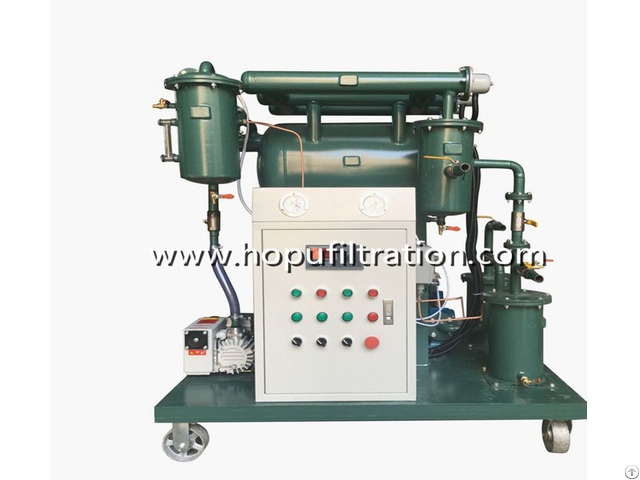

Single Stage Vacuum Transformer Oil Purifier

Vacuum Insulation Oil Purifier, Application:

ZY Single-Stage Vacuum transformer oil refinery machine is mainly used to improve the properties of insulation oil.

It can remove trace water, gas, particulate matters etc.

From the insulating oil, electric oil and transformer oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which have insulation system.

Edges:

1 - Compare with Double-Stage Transformer Oil Purifier, ZY haven't Roots pump, only have vacuum pump.

2 - Eliminates water, gas and impurities effectively by utilizing the unique technology of 3D Stereo-Evaporation, hence improve the voltage withstand strength and the quality of oil, which ensures a safe operation of power generation equipment.

3 - It can inject the insulation oil into the transformer devices, and has the function of electrification online operation.

4 - Enhance the value of breakdown voltage greatly.

5 - Easy handling and maintenance.

6 - Adopts double infrared liquid control automatically system to control inlet and outlet the oil smoothly.

7 - Lower maintenance and replacement expenses.

8 - ZY series equipment can be used for testing breakdown voltage of transformer oil and print the result automatically.

9 - Low maintenance and replacement expresses.

10 - High performance security system including pressure protection device and automatic temperature controller makes purifier operate safely.

11 - Utilizes coacervation technology, coalescing technology, separating technology and refined purification technology.

To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.

12 - This machine can work independently, also it can work with the oil regeneration system that can eliminate the acid, the color and reduce the PH value effectively, then further enhance the insulation value of oil.

Optional:

A : Without Enclosure, open and Stationary type

B : With Enclosure, Cubicle and Stationary type

C : With Skid base type

D : Mounted on casters

E : Mounted on Single-axle Trailers (Pneumatic tyre, Speed selectable)

F : Mounted on Double-axle Trailers (Pneumatic tyre, Speed selectable) You May also be interested in:

A: Transformer Oil Tester, Testing the insulating oil's dielectric strenght

B: Vacuum Pumping Set, pumping the transformer

C: Moisture Meter, measuring the water content in the transformer oil

D: Flow meter, measuring the flow oil quanity through the machine

Technical Parameters:

Parameters Unit ZY-6 ZY-10 ZY-20 ZY-30 ZY-50 ZY-100 ZY-150 ZY-200 ZY-300

Flow rate L/h 360 600 1200 1800 3000 6000 9000 12000 18000

Vacuum degree MPa -0.06~-0.095

Working pressure MPa ≤0.3 ≤0.4 ≤0.4 ≤0.4 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5

Temperature range °C 20 ~ 80

Continuous working H 150

Power supply Three phase, 50HZ, 380V(or as per customer requirement)

Working noise dB(A) 60 61 63 70 70 75 70 70 70

Heating power kW 9 11 13 15 30 48 58 70 85

Total power kW 9.7 12.5 14.5 16.5 33.5 53 65 76 94

Oil inlet/outlet mm φ20 25 φ25 φ25 φ32 φ42 φ50 φ50 φ60

Weight Kg 150 230 250 270 300 500 700 900 1100

Size L mm 970 1050 1100 1150 1200 1600 1600 1800 1900 W mm 630 750 850 900 950 1000 1100 1200 1200 H mm 900 1300 1400 1450 1500 1800 1800 1900 1900
