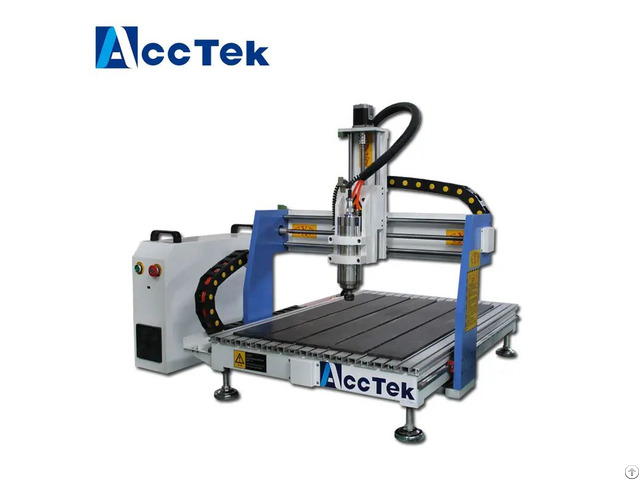

Small Desktop Wood 3d Cnc Router 6090 6012 Mini Aluminum - China
price: 2200.00 Dollar US$
1 X, Y, Z Working Area 600x900x200mm
2 Table Size 890X1200mm
3 X, Y, Z Traveling Positioning Accuracy ±0.03/300mm
4 X, Y, Z repositioning Positioning Accuracy ±0.02mm
5 Table Surface T-slot Extrusions
6 Frame Cast Steel
7 X, Z Structure Taiwan TBI Ball Screw
8 Y Structure Hiwin Rail Linear Bearings and Ball Screw
9 Max.
power Consumption 0.8Kw
10 Max.
Rapid Travel Rate 6000mm/min
11 Max.
Working Speed 4000mm/min
12 Spindle Power Motor 2.2 Kw spindle
13 Spindle Speed 0-24000RPM
14 Drive Motors Stepper system
15 Working Voltage AC220V/50/60Hz
16 Command Language G code
17 Control System Mach3 (DSP is optional)
18 Interface USB
19 Flash Memory 128M(U Disk)
20 Collet ER20
21 X, Y Resolution <0.01mm
22 Software Compatibility Type3 software, (Option: Artcam software)
23 Running Environment Temperature: 0℃~45℃
Relative humidity: 30%~75%
24 Packing Size 1470 x 1150 x 950mm
25 Net Weight 260KG
26 Gross Weight 310KG
