Super High Voltage Transformer Oil Purifier - China

Super High Voltage Transformer Oil Purifier, decolorization, degassing, dehydration machine

Untra High Voltage Transformer Oil Treatment Plant

Untra High Voltage Transformer Regeneration Recycling Plant

Application & Function

Ultra-high Voltage Grid is regarded as Electric High Way which features big capacity, distance and low loss.

Until now, there are 750KV, 1000KV, 660KV, 800KV direct current in our nation's ultra-high voltage grids.

Considering its safety, it has extremely requirement on insulating oil in transformer, mutual inductor and reactor, the ZYD Series Ultra-High Voltage Oil Treatment Equipment, manufactured by our company is effective in particles refining, vacuum degassing and oil-water separation.

This equipment has been successfully applied in 750KV alternating current and 800KV key projects.

And every oil treatment index reaches the national ultra-high voltage oil purification standard.

Transformer oil maintenance is the key to transformer reliability, performance and longevity.

Your transformer’s insulati Middle Type Vacuum Insulation Oil Recycling Machine ng oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages.

Even some new oils may require treatment to limit these contents to acceptable levels.

CE ISO Vacuum Transformer Oil Purifier Machine designed to remove contaminants (particulate, water, gasses, acids, etc.

).

We are a design, engineering and manufacturing company capable of application customization for best solutions.

Feature:

1 - Especially for removing water from transformer oil, such as free water, trace water and so on by the double stage vacuum system for high voltage oil.

2 - Remove gas, air content from the old high voltage transformer oil by vacuum degassing system.

3 - Remove impurities, tiny particles, acidity, sludge, free carbon, other soluble oil decay products and discoloration substances by 3 stages of filters (Primary filter, secondary filter, fine filter).

4 - Independent vacuum oiling system for transformers, this oil purifier can also vacuum dry transformer and on-line operation with transformers.

5 - Designed for processing high voltage insulating oils in workshops, onsite power stations, purifying oil in oil storage tanks or directly in transformers(energized or de-energized transformers).

6 - Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

7 - Double-infrared liquid level sensor, pressure protective system and foaming detecting and eliminating to ensure machine operation easily and safely.

8 - Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping.

Advantage:

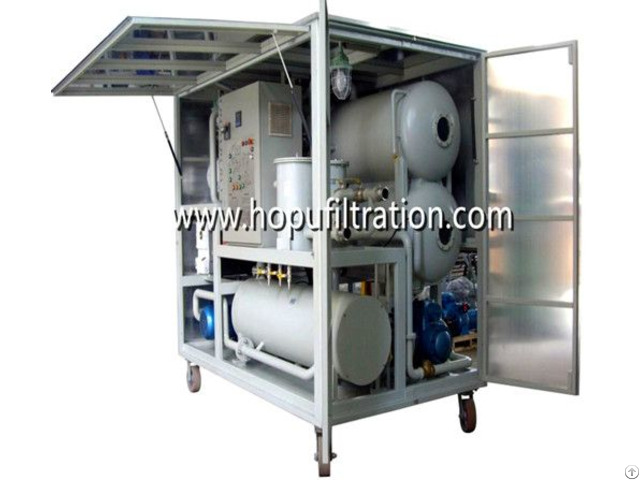

High Voltage Transformer Oil Purifier Machine Model ZYD is particularly suitable for filtering high-grade transformer oil, super-voltage transformer oil and new transformer oil.

It can be used for filtration of more than 110V substation live line work onsite.
