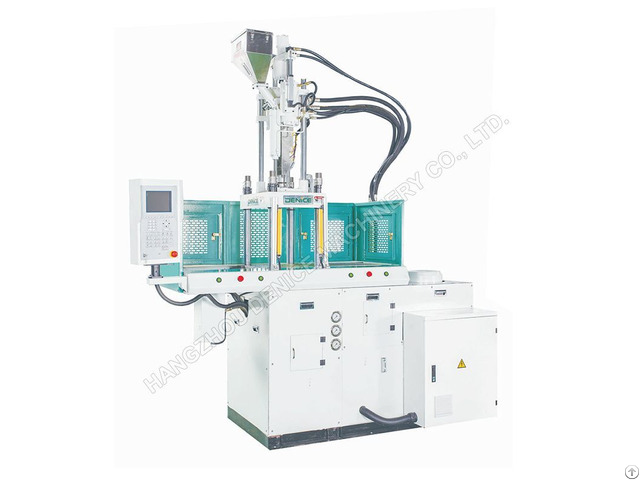

tube shoulder making machine DV-600DS

We Provide Tube Shoulder Making Machine And DENICE Tube Shoulder Making Machine High Quality, If You Need, Welcome To Contact Us To Know More.

Double Slide Table Style of DV-DS Series

*Vertical clamping, vertical injection structure design, fit for inserts plastic products molding.

*Double slide table, when it runs, two bottom molds with one upper mold slide left and right by turn, one mold operate out of the working area, upgrade work efficiency up to 30%, possess more operation

Specification

Model Unit DV-250DS

( Injection Unit ) Screw diameter mm Ф25 Ф28 Ф32 Maximum injection pressure Kg/cm2 1814 1446 1107 Theoretical shot volume cm3 49 61 80 Maximum shot weight(PS) g/Oz 45(1.6) 56(2.0) 74(2.6) Injection rate cm3/sec 37 46 60

( Clamping Unit ) Clamping force ton 25 Sliding Table Stroke mm 350 tie bar distance mm 355 × 225 Minimum mold thickness mm 100/180(Can be customized according to customer requirements) Opening stroke mm 180 Open daylight mm 280/360(As required) Ejector force T 1(Can be customized according to customer requirements) Ejector stroke mm 55

( Others ) Pump motor power Kw 4 Hydraulic system pressure Kg/cm2 140 Barrel heating power Kw 2.7 Total wattage Kw 6.7 Oil tank capacity L 120 Machine weight (approx.

) T 1.2 Machine dimensions(approx.

) m 1.5×1.8× 2.4

Company Contact:

• Posted By: Hangzhou Denice Machinery Co.,Ltd

• Phone: 86-571-63501868

• Address: Shangguan Xiang Special Industrial Zone ,Fuyang District, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.denice.com.cn/

• Business Description: Hangzhou DENICE Machinery Co., Ltd. is one of the most professional manufacturers of vertical injection molding machines in China.

  The company specializes in the production of high quality and high precision vertical injection molding machines that the clamping force is from 15 tons - 650 tons, and the injection volume is from 35 grams, 8000 grams.

  We have standard series machine, single slide plate series, double slide plate series and rotary table series injection molding machine.

  In addition, to improve the work efficiency and to the different needs of customers in different industry, we have special offer special machine with industry characteristics, such as: Special machines for golf, High-speed & high pressure plastic injection machines, J series energy-saving plastic injection machines, Liquid silicon rubber plastic injection machines(LSR), BMC, Bakelite injection molding machines, bi-color (multicolor) injection molding machines, APC series full automatic belt molding machines, and so on.

  Our products are widely used in automobile manufacturing, medical equipment industry, cosmetics industry, cutting tools, sanitary ware, furniture, toys, daily necessities, baby supplies, electronic connectors, optical lenses, back plate, watch movement gears, soles, color plate, hose and hard tube, and so on.

  Uphold the quality first, service customers, innovation management concept, our company continues to improve ourselves, constantly improve the quality of service, and create best value for our customers.
