Vacuum Insulation Oil Filtration Machine For Series Zy - China

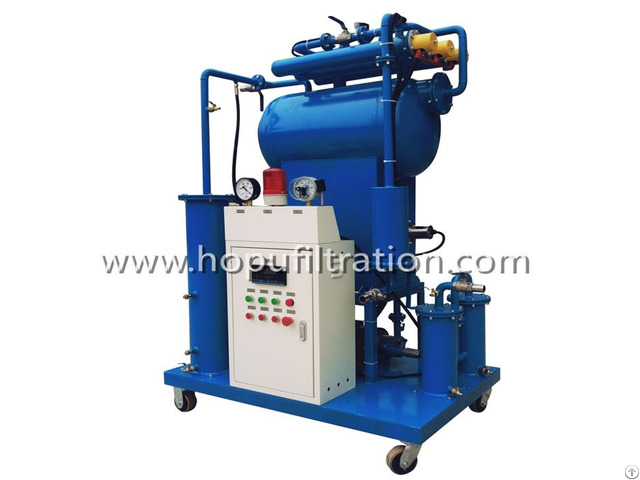

Vacuum Insulation Oil Filtration Machine for Series ZY

Vacuum Insulation Oil Purifier, Vacuum Insulation Oil Filtration Machine for Series ZY Application：

This purifier is applied to treat various of unqualified or used insulation oils including aging transformer oil, mutual inductor oil, switch oil, cable oil.

This type of Insulation Oil Filtration Machine can degas, dewater by low vacuum distillation, removing the impurities of insulating oil quickly and effectively.

It improves the value of voltage value, oil dielectric strength, extends oil service life and make sure electrical equipment work safely.

The power station and mine mainly use the machine to deal with transformer oil, mutual inductor oil, switch oil and cable oil.

Features:

1 - This machine is small, hi-efficient conveniently.

And it can live operated with electrical, vacuum oiling the power equipment and dry moisture of power equipment.

2 - Distinctive removing the impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.

3 - This machine adopts a high effective vacuum and the internationally advanced stereo-evaporation technology

4 - The oil of any grades can be treated on line at the working site

5 - This machine can work independently; also it can work with the oil regeneration system.

Technical Parameter

Parameters Unit ZY-10 ZY-20 ZY-30 ZY-50 ZY-70 ZY-150 ZY-200 ZY-300

Flow rate L/h 600 1200 1800 3000 4200 9000 12000 60000

Working vacuum MPa -0.06 ～ -0.095

Working pressure MPa 0.4 0.4 ≤0.4 0.5 0.5 0.5 0.5 0.5

Breakdown voltage KV ≥55 ≥55 ≥55 ≥60 ≥60 ≥60 ≥60 ≥65

Moisture PPM ≤5

Gas content % ≤0.1

Impurity content μ ≤5

Temperature range ℃ 10 ～ 80

Power supply 50HZ380V(or as needed)

Working noise dB(A) 61 63 70 70 75 70 70 70

Heating power KW 11 13 15 30 48 52.5 57.5 60

Total power KW 12.5 14.5 16.5 33.5 51.5 57.5 65.5 68

Inlet/outlet caliber mm φ25 φ25 φ25 φ32 φ40 φ50 φ50 φ60

Weight Kg 150 200 260 300 400 450 550 600

Size L mm 1050 1050 1100 1200 1450 1600 1800 1900 W mm 750 750 800 950 950 1100 1200 1200 H mm 1350 1350 1400 1500 1650 1800 1900 1900
