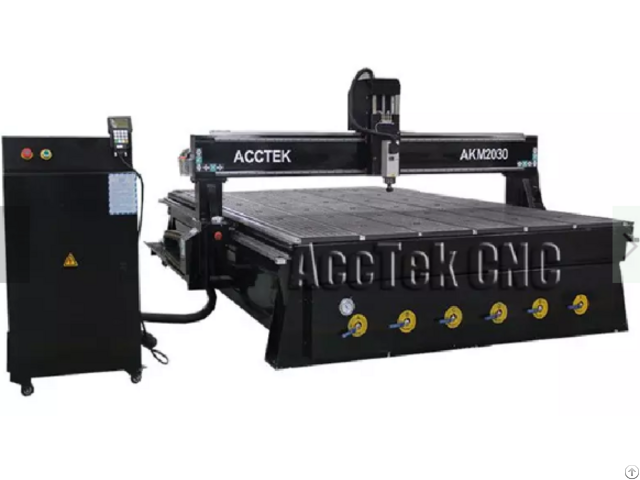

Wood Cutting Machine Cnc Router 3 Axis Acrylic - China
price: 6100.00 Dollar US$
Working Area
2000*3000*200mm
Traveling Positioning Accuracy
±0.03/300mm
Repositioning Accuracy
±0.03mm
Table
T-slot Table
X, Y axis
helical rack 1.25M, Hiwin 20# Rail Linear Bearing
Z axis
Hiwin Rail 20# Linear Bearing & Taiwan TBI Ball Screw
Max.
Power Consumption
(Without Spindle) 2.5kw~3Kw
Max.
Rapid Travel Rate
33000mm/min
Max.
Working Speed
25000mm/min
Spindle Power
Air cooling spindle
Spindle Speed
0-18000RPM
Drive Motors
Leadshine easy servo motor
Working Voltage
AC380V/50/60Hz, 3PH (Option: 220V)
Command Language
G Code
Operating System
Mach3 control System
Computer Interface
USB
Flash Memory
128M(U Disk)
X, Y Resolution
<0.01mm
Software Compatibility
Type3/UcancameV9/Artca m Software
Running Environment Temperature
0 - 45 Centigrade
Relative Humidity
30% - 75%
