Woodworking Carving And Cutting Wood Atc Cnc Router Machine With Horizontal Spindle - China

price: 14700.00 Dollar US$

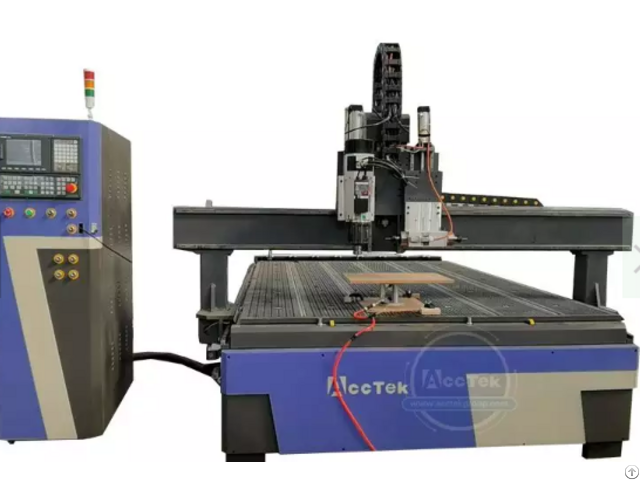

Woodworking Carving And Cutting Wood Atc Cnc Router Machine With Horizontal Spindle

Products Photos Catalog Woodworking Carving Photos Catalog

Description

Parameter

X, Y, Z Working Area

2000*3000x250mm

X, Y, Z Traveling Positioning Accuracy

±0.03/300mm

Table Surface

Vacuum&T-slot Table

Frame

Welded Structure, heavy duty T-structure

X, Y Structure

Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings

Z Structure

Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings

Max.

Power Consumption

5.0KW

Max.

Rapid Travel Rate

45000mm/min

Max.

Working Speed

30000mm/min

Spindle Power

9.0kw ATC air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Taiwan DELTA servo motor and driver

Working Voltage

AC380V/50/60Hz, 3PH

Control System

Taiwan SYNTEC control system

X, Y Resolution

<0.01mm

Software Compatibility

Type3 Software, (Option: Artcam Software)

Running Environment Temperature

0 - 45 Centigrade


Company Contact:


  • Phone: +086-0531-86160023

  • Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street, Jinan City, Shandong , China

  • Email: Email


Published date: December 30, 2022

  • Business Description: CNC Router,Auto Tool Changer Machine,3 Axis CNC Router,5&4 axis CNC Router,CNC Router For Stone,CNC Router For Metal,Multi heads CNC Router;CO2 Laser Machine,Fiber Laser Cutting Machine,Laser Marking Machine;Oscillating Knife
