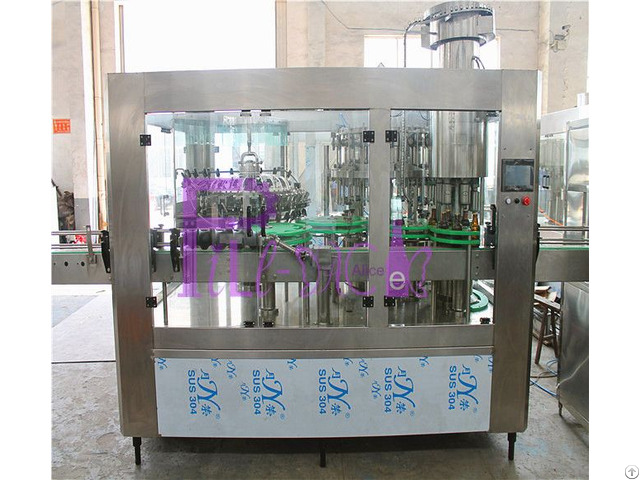

Beer Bottling Machine For Brewery Using Pull Ring Cap - China

Key words: beer bottling machine, beer bottling line, beer filling line

QUICK DETAILS:

Model: BCGF24-24-8

Brand: FILL-PACK

Main motor Power: 3kw

Voltage: 380V 3PH 50HZ or customized

Driven force type: Electrical

Automation degree: Automatic

Dimension: 3000*2400*2400mm

Weight: 6000kg

Application: beer

Packing category: Bottles

Packing material: glass

Cap category: pull ring cap

Condition: New

FILL-PACK beer bottling line price

PROPERTIES:

Capacity: 0-6000 BPH (0.5L)

Applicable bottle size: 0-1.5L

Key material: SUS304

Fuction: beer filling

Processing liquid: beer

Filling precision: +/- 2mm

Origin: ZhangJiaGang, China

After sales service: Engineers avaliable to service overseas

Qualification: CE, ISO9001-2008

More information you can visit our website

The beer bottling machine is used in production of beer packed in glass bottles.

Rinsing, Filling and capping are integrated in one machine.

The bottle enters into the rinsing part of three-in-one machine through belt conveyor.

The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground.

In the special rinsing area, the nozzle on the gripper sprays water to rinse bottle in wall.

The bottle that enters into the filler is switched by body holding plate.

The filling valve acted by the cam can realize up and down.

It adopts balanced pressure filling way.

The filling valve opens and begins filling when the inner bottle pressure is balanced with inside liquid tank, the filling valve move up and leave the bottleneck when it finishes filling.

The full bottle is transferred to the capping part through hold body transition poking wheel.

The stop screwing knife holds the bottle neck, keeps bottle upright not rotating.

The crown capping head keeps in revolution and autorotation.

It can finish a whole capping course including catching, pressing, discharging through the action of the cam.

The full bottle is transferred to bottle outlet conveyor to the next process through poking wheel.
