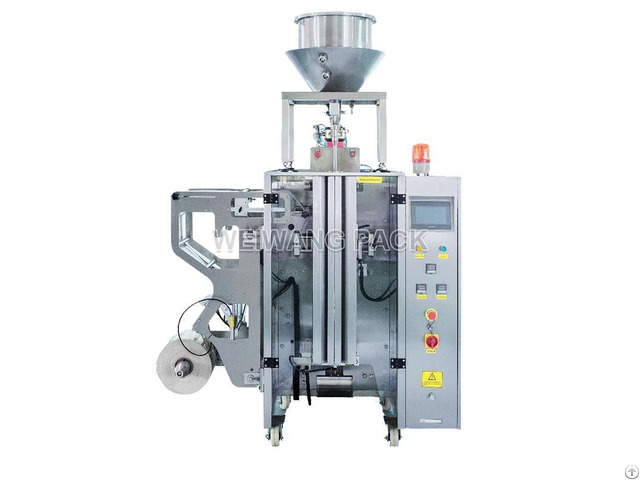

Liquid Pouch Packing Machine Weiwang Pack 320l 420l 520l 720l 1050l 1200l - China

Application: Suitable for many kinds of liquid, such as: milk, oil, shampoo, sauce, jam, juice, cream, paste, etc.

Optional Combined Parts All kind of vertical packing machine Paste/liquid filling machine Finished products conveyor Weight checker Metal checker Rotating table

Full automatic feeding measuring product and form film seal bags.

Full-automatic Dosing-Form-Fill-Seal type, efficient and simple to use.

Stainless steel 304 machine structure.

Easy to install film, auto correcting the excursion of the film.

PLC Computer control system, machine performance is more stable and convenient for parameters adjusting.

You can visit our website to get the pouch packing machine price

High accuracy liquid/paste filling system, anti-drip design Touch screen with multiple language

Optional Device: Date coder, Hole punching device (Pinhole, Round hole, The butterfly hole), Linking bag control device, Airfilling device, Air exhaust device.

Tear notch device, Nitrogen inflation device, Gusset bag.

Type WW - 320 WW - 420 WW - 520 WW - 720 WW - 1050 WW - 1200

Packing speed 10 - 80 bag / min 10 - 70 bag / min 5 - 60bag / min 5 - 60bag / min 5 - 40bag / min 5 - 30bag / min

Bag Length 50 - 200mm 50 - 300mm(L) 80 - 370mm(L) 80 - 470mm(L) 100 - 570mm(L) 100 - 800mm(L)

Bag width 40 - 150mm 50 - 200mm(W) 80 - 250mm(W) 100 - 350mm(W) 180 - 450mm(W) 200 - 580mm(W)

The max.

roll film width 320mm 420mm 520mm 720mm 1050mm 1200mm

Air consumption 0.65mpa 0.65mpa 1.0mpa 1.0Mps 1.0Mpa 1.0Mpa

Air consumption 0.25m3 / min 0.3m3 / min 0.4m3 / min 0.4m3 / min 0.5m3 / min 0.5m3 / min

Power 220V 50/60HZ 2Kw 220V 50/60HZ 2.2Kw 220V 50/60HZ 2.7Kw 220V 50/60HZ 3Kw 220V 50/60HZ 6kw 220V 50/60HZ 6kw

Overall size(L × W × H)

mm 1200 × 700 × 1520 1080 × 1300 × 1400 1650 × 1170 × 1700 1700 × 1270 × 1900 1750 × 1510 × 2100 2400 × 1800 × (H) 2750

Weight 400KG 600Kg 800Kg 900Kg 1000Kg 1200Kg
