16kw High Speed Pet Bottle Blowing Machine Making 1000 Bottles Per Hour - China

price: 2.00 Dollar US$

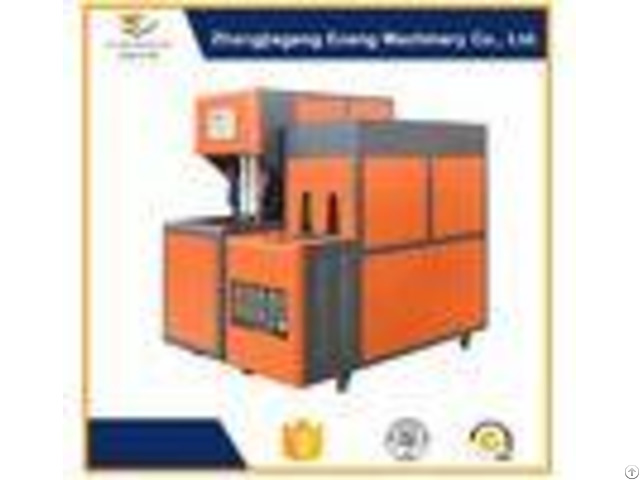

16kw High Speed Pet Bottle Blowing Machine Making 1000 Bottles Per Hour

Products Photos Catalog 16kw Pet Bottle Photos Catalog

2Ldrinking bottle Semi automatic machine for making pet bottle designed by CE standard.

With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily.

Only one person without special training operates it more easily and more safely.

YC-2L-2 is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles, especially oil bottles with handles.

- - - - Main machine | Model type | YC-2L-2 | YC-5L-1 | YC-5L-2 | YC-20L-1 | Product Spec | Max.

product volume(L/cav) | 2L | 5L | 5L | 20L | Max.

preform neck size(mm) | 100 | 150 | 130 | 200 | Max.

product diameter(mm) | 180 | 200 | 200 | 400 | Max.

product height (mm) | 300 | 400 | 400 | 600 | Cavities | 2 | 1 | 2 | 1 | Blow molding part | Die force (KN) | 100 | 120 | 150 | 150 | Die stroke (mm) | 270 | 320 | 300 | 340 | Max.

mould size(mm) | 390*345 | 390*350 | 390*530 | 420*500 | Mould thickness | Adjustable | Adjustable | Adjustable | adjustable | Mould spacing(mm) | Adjustable | | 400 | 400 | Max.

pulling stroke(mm) | 400 | 500 | 500 | 500 | Operation pressure(Mpa) | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | Operation air pressure consumption (1tr/min) | 200 | 350 | 350 | 560 | Blow pressure(Mpa) | 1.2-2.8 | 1.2-2.8 | 1.2-2.8 | 1.2-2.8 | Blow air pressure consumption (1tr/min) | 300 | 300 | 360 | 650 | Output(pcs/h) | 800 | 300 | 500-600 | 150 | Machine size(LxWxH)(m) | 1.46*0.58*1.8 | 1.56*0.7*1.9 | 1.7*0.85*2.1 | 2.18*0.77*1.96 | Machine weight(KG) | 650 | 700 | 800 | 1000 | Oven | Temperature grade(rate) | 8 | 8 | 8 | 8 | Heating time(S) | 90-200 | 90-200 | 90-200 | 90-200 | Voltage(V) | 220 or as your request | 220 or as your request | 220 | 220 | Frequency(HZ), | 50/60 | 50/60 | 50/60 | 50/60 | Total power(KW) | 16 | 16 | 16 | 15-40 | Oven Size (LxWxH) | 1.35*0.55*1.15 | 1.45*0.65*1.15 | 1.45*0.65*1.15 | 2.37*0.68*1.65 | Oven weight (KG) | 300 | 330 | 330 | 380 | - - - -


Company Contact:


  • Phone: 86-158-50390442

  • Address: Xitang Road On The 18th,Xizhang Town,Zhangjiagang,Suzhou City,Jiangsu Province,China, Suzhou , Jiangsu , China

  • Email: Email


Published date: May 8, 2018

  • Business Description: Eceng Machinery have many years of experiences in manufacturing.

    And our efforts in product improvement earned more than 100 country customers.

    We always try to provide the most reliable solution, machine, after-sale service for every costumer from every corner of the world!Welcome to visit us！
