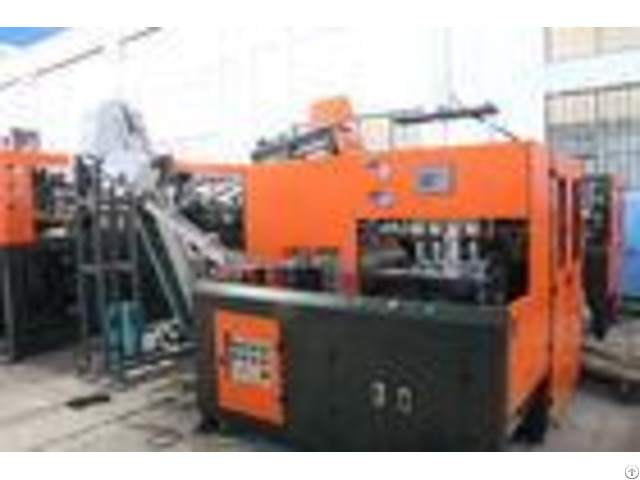

Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader - China
price: 5000.00 Dollar US$
YC-2L-4 semi auto utomaticwater tank blow molding machine with auto loader Semi-automatic blow moulding machine l Use integated mic computer controler, with OMRON control chip, the response speed is very quickly and the timing very precisely.
Use life durable and failture rate very low.
Its the revolutionary product of industrial control.
l High responsiveness pneumatic components, action timely and precisely l Thorough safe operation mechanism, start-up with two hands, avoid the accident during the operation l Infrarted heating technology, safe and energy conservation, no pollution of the environment.
With the 8 rates adjustable temperature controler, make the temperature suitable for blowing.
- - - - Main machine (blower + oven) | Model type | Tech data | Product Spec | Max.
product volume(L/cav) | 2L | | Max.
preform neck size(mm) | 100 | | Max.
product diameter(mm) | 180 | | Max.
product height (mm) | 300 | | Cavities | 4 | Blow molding part | Die force (KN) | 100 | | Die stroke (mm) | 270 | | Max.
mould size(mm) | 390*345 | | Mould thickness | Adjustable | | Mould spacing(mm) | Adjustable | | Max.
pulling stroke(mm) | 400 | | Operation pressure(Mpa) | 0.8-1.0 | | Operation air pressure consumption (1tr/min) | 200 | | Blow pressure(Mpa) | 1.2-2.8 | | Blow air pressure consumption (1tr/min) | 300 | | Output(pcs/h) | 2600-2800(500ml bottle) | | Machine size(LxWxH)(m) | 1.46*0.58*1.8 | | Machine weight(KG) | 650 | Oven | Temperature grade(rate) | 8 | | Heating time(S) | 90-200 | | Voltage(V) | 220 or as your request | | Frequency(HZ) | 50/60 | | Total power(KW) | 16 | | Oven Size (LxWxH) | 1.35*0.55*1.15 | | Oven weight (KG) | 300 | - - - - Packaging & Shipping packed in wooden cases or film according to the requirement of customers Our Services After sales service 1) Free charge for mould design 2) Free charge to provide spare parts for one year 3) Engineers available to install and test machine overseas 4) 1 year warranty and lifetime maintenance Company Information FAQ If you are interested in this model or require this machine, please feel free to send me inquiry, I will provide detailed information for you .
Company Contact:
- Posted By: Zhangjiagang Eceng Machinery Co.,Ltd
- Phone: 86-158-50390442
- Address: Xitang Road On The 18th,Xizhang Town,Zhangjiagang,Suzhou City,Jiangsu Province,China, Suzhou , Jiangsu , China
- Email:
Published date: May 7, 2018
- Business Description: Eceng Machinery have many years of experiences in manufacturing.
And our efforts in product improvement earned more than 100 country customers.
We always try to provide the most reliable solution, machine, after-sale service for every costumer from every corner of the world!Welcome to visit us！
