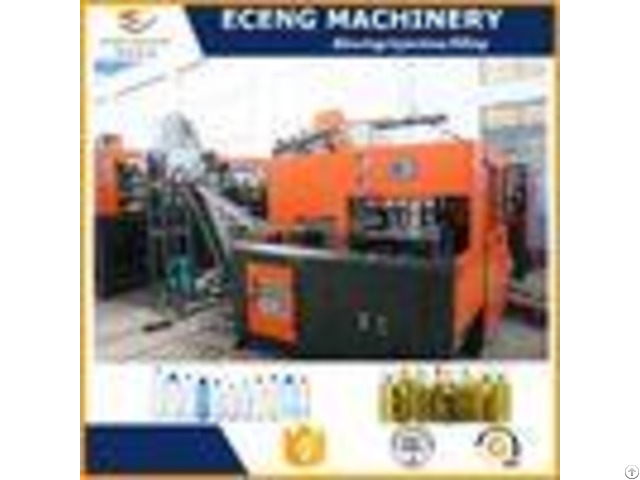

Energy Saving Semi Auto Blowing Machine With Cold Air Circulating System - China

PET Plastic Processed and air pressure blowing Blow Moulding Type pet bottle making machine designed by CE standard.

With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily.

Equipped with SMC cylinder, siemens PLC, Omran electric, fast and stable .

Only one person without special training operates it more easily and more safely.

YC-2L-4is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles, capacity reach 2400BPH - - - - Main machine | Model type | YC-2L-2 | YC-5L-1 | YC-5L-2 | YC-20L-1 | Product Spec | Max.

product volume(L/cav) | 2L | 5L | 5L | 20L | Max.

preform neck size(mm) | 100 | 150 | 130 | 200 | Max.

product diameter(mm) | 180 | 200 | 200 | 400 | Max.

product height (mm) | 300 | 400 | 400 | 600 | Cavities | 2 | 1 | 2 | 1 | Blow molding part | Die force (KN) | 100 | 120 | 150 | 150 | Die stroke (mm) | 270 | 320 | 300 | 340 | Max.

mould size(mm) | 390*345 | 390*350 | 390*530 | 420*500 | Mould thickness | Adjustable | Adjustable | Adjustable | adjustable | Mould spacing(mm) | Adjustable | | 400 | 400 | Max.

pulling stroke(mm) | 400 | 500 | 500 | 500 | Operation pressure(Mpa) | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | Operation air pressure consumption (1tr/min) | 200 | 350 | 350 | 560 | Blow pressure(Mpa) | 1.2-2.8 | 1.2-2.8 | 1.2-2.8 | 1.2-2.8 | Blow air pressure consumption (1tr/min) | 300 | 300 | 360 | 650 | Output(pcs/h) | 800 | 300 | 500-600 | 150 | Machine size(LxWxH)(m) | 1.46*0.58*1.8 | 1.56*0.7*1.9 | 1.7*0.85*2.1 | 2.18*0.77*1.96 | Machine weight(KG) | 650 | 700 | 800 | 1000 | Oven | Temperature grade(rate) | 8 | 8 | 8 | 8 | Heating time(S) | 90-200 | 90-200 | 90-200 | 90-200 | Voltage(V) | 220 or as your request | 220 or as your request | 220 | 220 | Frequency(HZ), | 50/60 | 50/60 | 50/60 | 50/60 | Total power(KW) | 16 | 16 | 16 | 15-40 | Oven Size (LxWxH) | 1.35*0.55*1.15 | 1.45*0.65*1.15 | 1.45*0.65*1.15 | 2.37*0.68*1.65 | Oven weight (KG) | 300 | 330 | 330 | 380 | - - - - Our Services 1 - Reply the email and take action in 24 hours; 2 - 100% Quality inspection before the shipment; 3 - Can trainning clients operator for free in seller`s factory 4 - Engineer overseas is avilable 5 - Blowing mould and injection mould made orginal 6 - Auxiliary machines for complate line.

7 - Custimized design as requirements.
