Intelligent Semi Auto Blowing Machine For 10 20l Drinking Water Bottlers - China

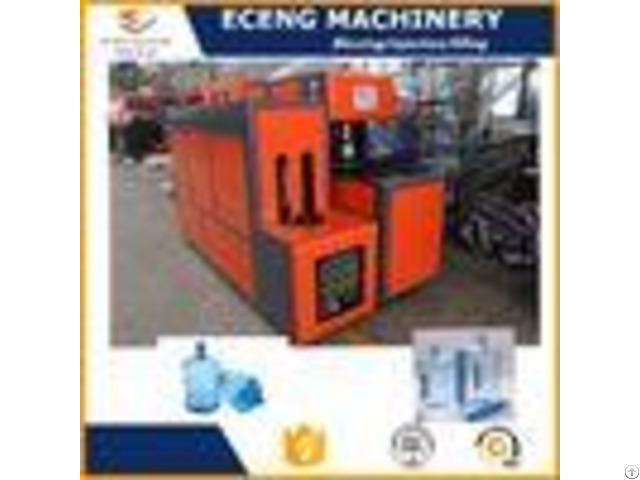

5gallon semi automatic plastic PET blow moulding machine 10-20L YC-20L-1 is to produce 5gallon water bottle.

Machine is designed by CE standard.

With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily.

Only one person without special training operates it more easily and more safely.

It is fit to blow carbonated beverage bottles, mineral water bottles, cooking oil bottles, especially oil bottles with handles.

Technology advantage: Special design, high rigid compound die structure Wide adaptability, suitable for every type mould thickness Adjust convenience No mould rolling out More energy conservation, no need much air supply High burnish principal axis, with very precise polishing, light action and low noise.

Short mould stroke, quick action All ZG45 casting, with long timing process, very small transformation, can meet your precise request 100% Hig dead-weigh, ensure the steady during the opeartion Parameters: - - - - | | | | Main machine | Model type | YC-10L-1 | YC-20L-1 | Product Spec | Max.

product volume(L/cav) | 10 | 20 | Max.

preform neck size(mm) | 180 | 200 | Max.

product diameter(mm) | 300 | 400 | Max.

product height (mm) | 480 | 600 | Cavities | 1 | 1 | Blow molding part | Die force (KN) | 150 | 150 | Die stroke (mm) | 340 | 340 | Max.

mould size(mm) | 380*450 | 420*500 | Mould thickness | adjustable | adjustable | Mould spacing(mm) | adjustable | 400 | Max.

pulling stroke(mm) | 500 | 500 | Operation pressure(Mpa) | 0.8-1.0 | 0.8-1.0 | Operation air pressure consumption (1tr/min) | 560 | 560 | Blow pressure(Mpa) | 1.2-2.8 | 1.2-2.8 | Blow air pressure consumption (1tr/min) | 650 | 650 | Actual Output(pcs/h) | 100-150 | 80-100 | Machine size(LxWxH)(m) | 2.0*0.75*1.8 | 2.2*0.75*1.8 | Machine weight(KG) | 1000 | 1000 | Oven | Temperature grade(rate) | 8 | 8 | Heating time(S) | 90-200 | 90-200 | Voltage(V) | 220 | 220 | Frequency(HZ) | 50/60 | 50/60 | Total power(KW) | 15-40 | 15-40 | Oven Size (LxWxH) | 2.37*0.68*1.65 | 2.9*0.68*1.65 | Oven weight (KG) | 380 | 380 | - - - - Our Services 1 - Reply the email and take action in 24 hours; 2 - 100% Quality inspection before the shipment; 3 - Can trainning clients operator for free in seller`s factory 4 - Engineer overseas is avilable 5 - Blowing mould and injection mould made orginal 6 - Auxiliary machines for complate line.

7 - Custimized design as requirements.

Company Contact:

• Posted By: Zhangjiagang Eceng Machinery Co.,Ltd

• Phone: 86-158-50390442

• Address: Xitang Road On The 18th,Xizhang Town,Zhangjiagang,Suzhou City,Jiangsu Province,China, Suzhou , Jiangsu , China

• Email:

• Website: https://www.petbottleblowingmachine.com

• Business Description: Eceng Machinery have many years of experiences in manufacturing.

  And our efforts in product improvement earned more than 100 country customers.

  We always try to provide the most reliable solution, machine, after-sale service for every costumer from every corner of the world!Welcome to visit us！
