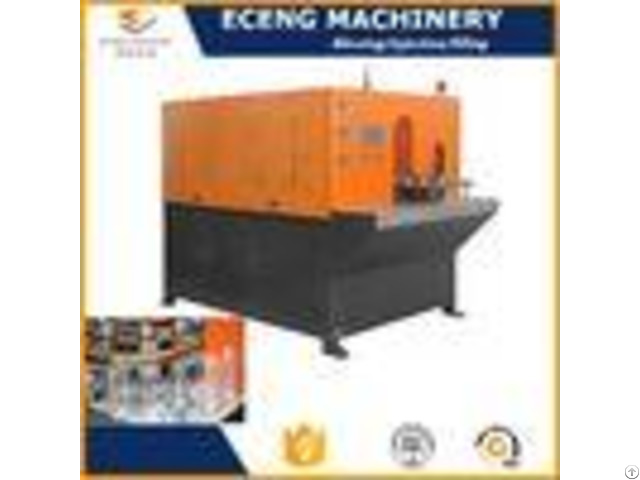

Plastic Container Automatic Blow Molding Machine With Anti Vibration Structure - China
price: check with company for price
Product Details: Automatic PET jar wide neck bottle blow molding machine YCQ-2L-2H is hand feeding wide-neck PET jar blow molding machine.
Its best choise for wide-mouth/big neck PET jar/PET can.
Advantage: A.
Stable performance with advanced PLC.
B.
Conveying preforms automatically with conveyor.
C.
Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D.
High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E.
High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.
No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G.
Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H.
Strong clamping force with high pressure and double crank links to lock the mold.
I.
Two ways of operating: automatic and manual.
J.
Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K.
Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L.
Contamination is avoided for the bottle body.
M.
Ideal effect of the chilling with the chilling system.
N.
Easy installation and starting O.
Low rejection rate: less than 0.3percent.
Parameters: - - - - Item | YCQ-2L-2H | Bottle type specification | Cavity | 2 | Theory output | 1600-1800 | Max.
volume | 2L | Bottle mouth maximum overall DIdiameter | 80mm | Bottle biggest diameter | 100mm | Bottle maximum height | 330mm | Power specifications | Light tube quantity | 32pcs | Light tube power | 0.75KW | Maximum heating power | 24KW | All electric machine installation | 27KW | Actual consumption | 19KW | Air pressure specification | Work pressure | 7-9kg/cm2 | Low-pressure gas consumption | 1000L/min | Blow bottle pressure | 25-35kg/cm2 | Higher -pressure gas consumption | 1500Ltr/min | Forzen water specification | Work pressure | 5-6 kg/cm2 | Temperature range | 10 | Consumption | 5000kcal/hr | Forzen water flow | 30L/min | Machine specification | Size of the machine | 2.25x1.6x1.7 | Weight of the machine | 2.0ton | - - - -
Company Contact:
- Posted By: Zhangjiagang Eceng Machinery Co.,Ltd
- Phone: 86-158-50390442
- Address: Xitang Road On The 18th,Xizhang Town,Zhangjiagang,Suzhou City,Jiangsu Province,China, Suzhou , Jiangsu , China
- Email:
Published date: May 8, 2018
- Business Description: Eceng Machinery have many years of experiences in manufacturing.
And our efforts in product improvement earned more than 100 country customers.
We always try to provide the most reliable solution, machine, after-sale service for every costumer from every corner of the world!Welcome to visit us！
