Smart High Speed Semi Auto Blowing Machine With Articulated Refueling Devices - China

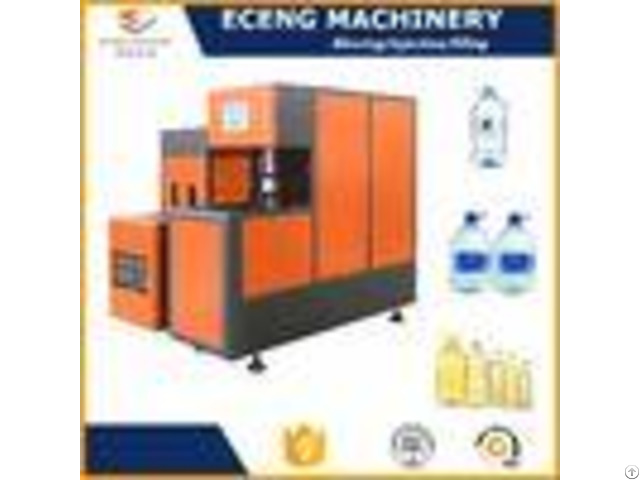

3L-5L plastic pure water bottle two cavity blowing machine Features: YC-5L-2Semi-automatic bottle blow molding machine can produce PET containers including the bottles for kinds of wine, drink, soybean, vinegar, and pesticide (less than 5 liters) according to the different bottle shapes and diameters.

It has automatic system with high efficiency.

The distant infrared ray heat pipe are used in the machine.

It has high pressure protection with the feature of precisely removing mould, The machine has low noise, It is easy to maintain, Its the equipment for producing PET bottles.

- - - - Main machine | Model type | YC-2L-2 | YC-5L-1 | YC-5L-2 | YC-20L-1 | Product Spec | Max.

product volume(L/cav) | 2L | 5L | 5L | 20L | Max.

preform neck size(mm) | 100 | 150 | 130 | 200 | Max.

product diameter(mm) | 180 | 200 | 200 | 400 | Max.

product height (mm) | 300 | 400 | 400 | 600 | Cavities | 2 | 1 | 2 | 1 | Blow molding part | Die force (KN) | 100 | 120 | 150 | 150 | Die stroke (mm) | 270 | 320 | 300 | 340 | Max.

mould size(mm) | 390*345 | 390*350 | 390*530 | 420*500 | Mould thickness | Adjustable | Adjustable | Adjustable | adjustable | Mould spacing(mm) | Adjustable | | 400 | 400 | Max.

pulling stroke(mm) | 400 | 500 | 500 | 500 | Operation pressure(Mpa) | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | Operation air pressure consumption (1tr/min) | 200 | 350 | 350 | 560 | Blow pressure(Mpa) | 1.2-2.8 | 1.2-2.8 | 1.2-2.8 | 1.2-2.8 | Blow air pressure consumption (1tr/min) | 300 | 300 | 360 | 650 | Output(pcs/h) | 800 | 300 | 500-600 | 150 | Machine size(LxWxH)(m) | 1.46*0.58*1.8 | 1.56*0.7*1.9 | 1.7*0.85*2.1 | 2.18*0.77*1.96 | Machine weight(KG) | 650 | 700 | 800 | 1000 | Oven | Temperature grade(rate) | 8 | 8 | 8 | 8 | Heating time(S) | 90-200 | 90-200 | 90-200 | 90-200 | Voltage(V) | 220 or as your request | 220 or as your request | 220 | 220 | Frequency(HZ), | 50/60 | 50/60 | 50/60 | 50/60 | Total power(KW) | 16 | 16 | 16 | 15-40 | Oven Size (LxWxH) | 1.35*0.55*1.15 | 1.45*0.65*1.15 | 1.45*0.65*1.15 | 2.37*0.68*1.65 | Oven weight (KG) | 300 | 330 | 330 | 380 | - - - - Our Services 1 - Reply the email and take action in 24 hours; 2 - 100% Quality inspection before the shipment; 3 - Can trainning clients operator for free in seller`s factory 4 - Engineer overseas is avilable 5 - Blowing mould and injection mould made orginal 6 - Auxiliary machines for complate line.

7 - Custimized design as requirements.
