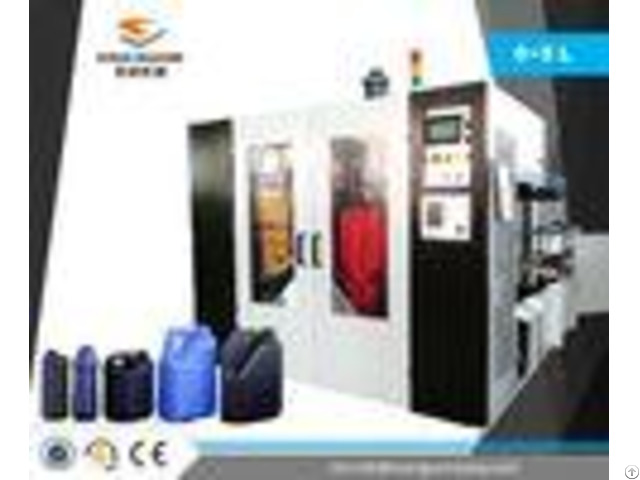

Two Cavity Plastic Container Manufacturing Machine Easy To Operate Maintenance - China

Extrusion HDPE plastic bottle blow molding machine Condition: New Application: Bottle Plastic Processed: PE Blow Moulding Type: Extrusion Blow Moulding Automatic: Yes Voltage: 380V Power(W): 15KW Dimension(L*W*H): 3.0*2.0* 2.0M Weight: 6.5T Certification: CE, ISO9001: 2008 Warranty: One Year Guarantee After-sales Service Provided: Overseas service center available Shape mode: Double station Extruder screw diameter: 65mm Product range: 50ml to 2L Clamping unit: Hydraulic/penumatic/ bosster cylinder Packaging Details: Covered by standard waterproof film, fixed in container.

Delivery Detail: Shipped in 35 days after payment Product Description Double station extrusion blow molding machine Model: YC-2L - - - - (1) | Double station/single layer, 65mm screw/15kw motor, for PE/PP/PVC material | (2) | Output | e.

g 50ml3000pcs/hour 500ml1500pcs/hour 1000ml 900 pcs/hour | (3) | Die-head | 1 to 4 cavities, center feed design | (4) | Electrical control | MITSUBISHI PLC&Touch Screen and Schneider electric parts | (5) | Hydraulic system: | YUKEN oil pump, assure stable mold traverse | (6) | Working condition: | Power supply380VAC, 50Hz (depending on client's country) | | | Water source5HP Water chiller | | | Air source0.6Mpa, 0.6m3/min (1.2 m3/min air compressor) | - - - - Application Capable for 50ml to 2L hollow plastic product with PP/PE/PVC/TPU/PA Paremeter - - - - Item | Unit | Parameter | Basic Specification | Raw material | / | PE/PP/PA/PVC etc.

| Dimension | m | 3.02.02.0 | Total Weight | kg | 6500 | Extrusion system | Diameter of screw | mm | 65 | Screw L/D ratio | L/D | 25: 1 | Plasticizing capacity | kg/h | 70 | Number of heating zones | pcs | 5 | Extruder heating power | kW | 15 | Extruder drive power | kW | 15 | Die head | Number of heating zones | pcs | 2 | Heating power | kW | 4 | Clamping system | Clamping range | mm | 150-200 | Sliding Distance | mm | 360-400 | Clamping force | KN | 60 | Power consumption | Air pressure | Mpa | 0.6 | Air consumption | m3/min | 0.4 | Cooling water pressure | Mpa | 0.3 | Cooling water consumption | m3/h | 1.2 | Oil pump power | kW | 7.5 | Oil pump capacity | ml/r | 47 | Total Power | kW | 41.5 | Average power Consumption | kW | 17 | - - - - Model dispaly Packaging & Shipping Our Services 1 - Reply the email and take action in 24 hours; 2 - 100% Quality inspection before the shipment; 3 - Can trainning clients operator for free in seller`s factory 4 - Engineer overseas is avilable 5 - Blowing mould and injection mould made orginal 6 - Auxiliary machines for complate line.

7 - Custimized design as requirements.
