Gaia Hot Product 300m Vga Extender With Audio Over Cat5e 6 Ethernet - China

Features & Applications

The CAT5-Link TM mini VGA-Audio Extender and tiny VGA-Audio Remoter transmit VGA-Audio up to 100/1200 feet away from a computer using CAT5/5e/6 cable.

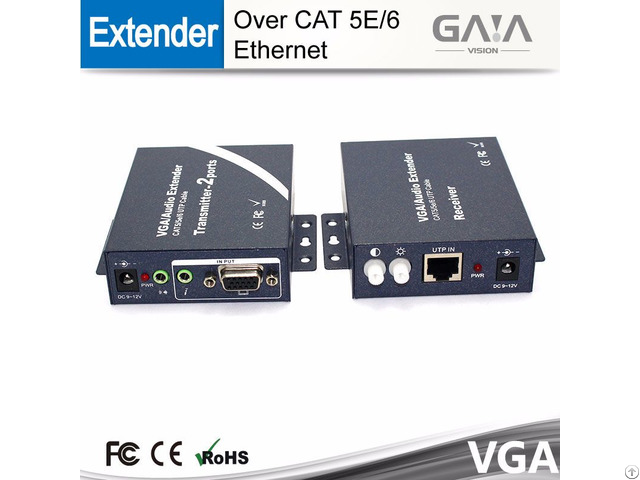

The VGA-Audio extender consists of a local unit that connects to a computer and also supplies VGA video and stereo audio to a local monitor and speaker, and a remote unit that connects to a monitor and speaker.

The mini VGA-Audio extender and tiny remoter uses +9V to +12VDC (500mA) external adaptor power, mini extender has mounting holes in metal case.

Sharpest and clearest VGA quality over CAT5 of any manufacturer.

Hi performance Audio quality over CAT5 of any manufacturer

Supports local and remote VGA monitors and Speakers.

Real Time Transmission Video & Audio signals by single CAT5 cable

No TCP/IP protocol and networking setting and maintenance

No Ant firewall needed, no IP and networking occupation

Plug and Play, compatible with all format VGA video signals.

Built-in ESD and surge protection.

Available with VGA contact and RGB brightness adjustment

Power-red LED.

Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.

Metal case (Sender, Remoter)

Local Unit

Host Connection

Supports a PC, SUN, MAC or PC Switch.

Female 15-pin HD connector for computer connection.

Stereo audio support - 3.5mm stereo plug.

Local Access

Crisp and clear 640X480 to 1920x1440 video resolutions.

Female 15-pin HD and 3.5mm stereo connectors for local VGA monitor and speaker.

Stereo audio input - 3.5mm stereo jack.

Cables

CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

Dimensions:

WxDxH (mm): 95x97x28 (Mini Sender)

Weight: 550g (Mini Sender)

Mounting holes in metal case(Mini Sender)

Environmental

Operating temperature: 32°F to 100°F (0°C to 38°C).

Storage temperature: -20°F to 140°F (-30°C to 60°C).

Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.

Remote Unit

Supports resolutions from 640X480 up to 1920x1440; refer to the resolution charts below for resolutions at different lengths.

Female 15-pin HD connector.

One 3.5mm connector for audio output connection.

Both Mini and Tiny VGA Remoter can support POE solution Video Quality and Adjustment

ToolFreeTM - Mini VGA Audio Remoter, : video quality brightness, contractadjustment for different lengths of CAT5/5e/6 cable is done manually for video-audio remoter.

EasyToolTM Tiny VGA Audio Remoter (30/60/100m): video quality and audio, no adjustment needed

Dimensions:

WxDxH (mm): 64x45x23 (Tiny Remoter) 95x97x28 (Mini Remoter)

Weight: 300g/550g

Mounting holes in metal case(Mini Remoter)
