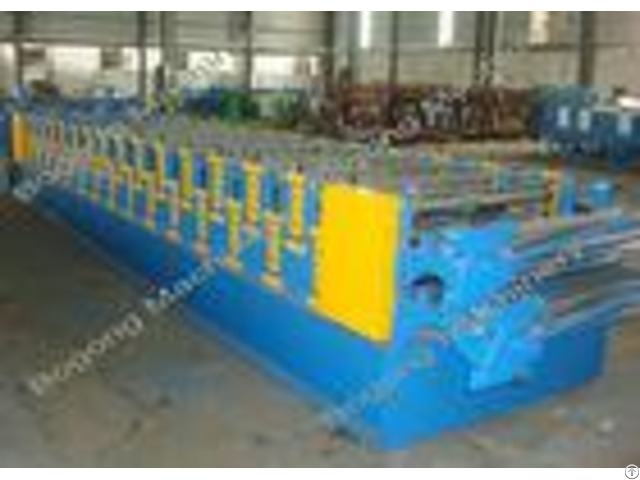

75mm Shaft Double Layer Roll Forming Machine High Speed 8500 1650 1850mm - China

price: check with company for price

China Factory Making Metal Roofing Sheet Double Layer Roll Forming Machines For Sale Technical Parameter - - - - Machine Component | Specification | 5Tons Manual Deocoiler | Coil Inner-diameter=51030mm.

Coil Outer-diameter Max.

1300mm | Taper wedge expanding system | Load Capacity: Max.

5 Tons; Coil Width Max.

1250mm | Dual Layer Cold Rolling Mills | Gear/Sprocket driving; | Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.

| Shafts Diameter=75mm, Precision Machined, fine Polished | Main motor =7.5KW, Frequency speed control | Max Line speed of roll Former: Approx.

10-15m/min | Hydraulic Cutting Device | Stop to cut, Post cut, slug cut | Cutting tool material: Cr12, Heat treatment | Hydraulic unit, Pump motor =3KW | PLC Control System | Control the quantity & cutting length automatically | Combined with: PLC (Siemens), Touch Screen (Siemens), Encoder (Omron), etc | Cut-to-length tolerance2mm | 24V Control voltage | Portable controller with forward/backward/emergenc y stop buttons | Product Rack | Un-powered, 3 units | - - - - Roll Forming Machine processing step Leading the steel coil into our material feeding guide, adjust material running direction correctly, start the PLC control system to start test first one piece sample.

When the China Factory Making Metal Roofing Sheet Double Layer Roll Forming Machines product sample reach at cutting position, low down the machine running speed, and see if the roof sample can go out from cutting blade smoothly, then cut off and check the final sample is acceptable.

Above all actions should be done under manual state.

After confirm the sample is Ok, we can set the product batch, product length, quantity on touch screen, then switch to auto state on the PLC control box, whole China Factory Making Metal Roofing Sheet Double Layer Roll Forming Machines can start to automatic producing.

This roll forming machine has been manufactured for our Philiphines customer, the purpose is for saving factory place and manufacturing cost, two layers can not be run on the same, when we need to produce upper layer roof roll forming design, the low layer should be stopped and lock.

Whole roll forming lines can work smoothly like only one layer roof sheet roll forming machine.

Roll Forming Rollers


Company Contact:


  • Phone: 86-592-6382566

  • Address: Area 5, No. 788 Jimei North Road, Jimei District, Xiamen, China, Xiamen , fujian , China

  • Email: Email


Published date: April 25, 2018

  • Business Description: With good faith in roll forming machines industrial, Xiamen Bogong Automatic Technology Co.

    Ltd has been on effort for kinds of roll forming machines more than 10 years.

    During this period, except ourselve roll forming machines, many oversea customers need other assistant help such steel coil.
