Cuatom Design Shutter Door Roll Forming Machine 0 6mm 0 8mm Material Thickness - China

Good Quality Pre-painted Steel Slats Rolling Shutter Door Roll Forming Machine Roll Shutter Door Machine Description 1 - Roll Gate, also known as the "shutter door", is a lot of joint activities in tandem with the doors, in a fixed chute, to the top of the scroll in the center of the door rotating up and down the door.

2 - Roll gate is applicable to commercial facades, garages, shopping malls, hospitals, factories, mines and other public places or dwellings.

Our one set Pre-painted steelslatsrolling shutter door roll forming machine can both produce common cutting shutter door piece and slats shutter door piece.

3 - Pre-painted Steel Slats Rolling Shutter Door Roll Forming Machine is composed of uncoiler, roll former, punching together cutting device, product rack and plc control system.

Slats roller shutter door cutting Common Cutting Type Quick details: - - - - 1.5Tons Manual Deocoiler | Coil Inner-diameter=51030mm.

Coil Outer-diameter Max.

1300mm | Taper wedge expanding system | Load Capacity: Max.

1.5 Tons; Coil Width Max.

1250mm | Pre-painted steel slats rolling shutter door roll forming machine | Gear/Sprocket driving; 14 stations roll forming | Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.

| Shafts Diameter=65mm, Precision Machined, fine Polished | Main motor =4KW, Frequency speed control | Max Line speed of roll Former: Approx.

10-15m/min | Hydraulic Cutting Device | Stop to cut, Post cut | Cutting tool material: Cr12, Heat treatment | Hydraulic unit, Pump motor =3KW | PLC Control System | Control the quantity & cutting length automatically | Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron), etc | Cut-to-length tolerance2mm | 24V Control voltage | Controller with forward/backward/emergenc y stop buttons | Product Rack | Un-powered, 3 units | - - - - Our advantages a.

Own factory b.

Rich experience in design c.

Competitive in price d.

Good quality e.

excellent back-up sevice f.

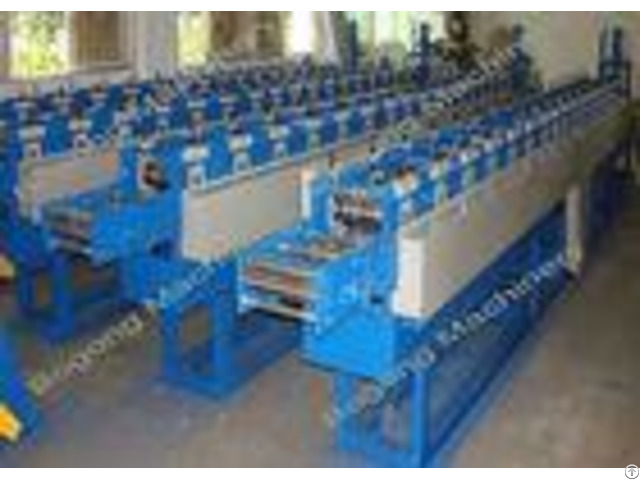

Good performance Machine photos
