Custom Steel Sheet Roller Shutter Door Roll Forming Machine 75mm Shaft Diameter - China

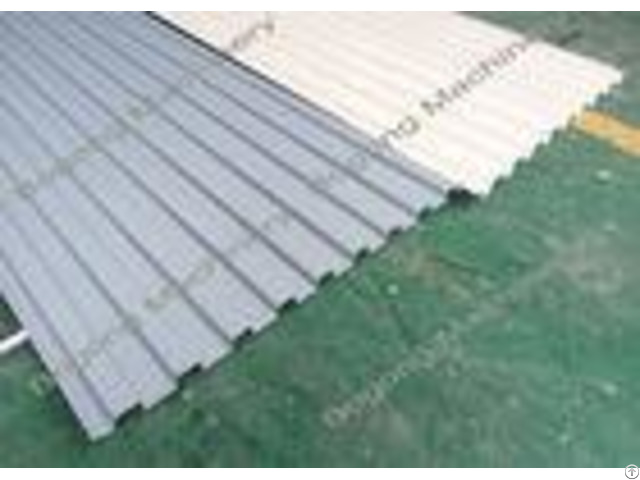

Custom Steel Sheet Roller Shutter Door Panel Roll Forming Machine Introduction Of Rolling Shutter Door Machine This Custom Steel Sheet Roller Shutter Door Panel Roll Forming Machine has been designed for producing the corrugation sheet panels which are jointed together horizontally to construct roller shutter doors (not for corrugated roof panels), a type of door that is open and close by means of raising and lowering along roller shutter door tracks or roller shutter guide rails on each side of doors.

Custom Steel Sheet Roller Shutter Door Panel Roll Forming Machineusually cooperates with a lock seaming machine; after the roller shutter door panels are roll formed, two or more panels have to be seamed together through a lock seaming machine to construct the roller shutter doors.

Custom Steel Sheet Roller Shutter Door Panel Roll Forming Machine generally consists of a decoiler (a hydraulic decoiler is optional ), a main roll forming machine, transmission system, a cutting tool, hydraulic system, a hydraulic oil pump, a PLC control cabinet and runout tables.

Standing Pillar Machine Frame Design as below: Technical Parameter - - - - Metal Rolling Shutter Door Machine | Gear/Sprocket driving; 26stations roll forming | Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.

| Shafts Diameter=75mm, Precision Machined, fine Polished | Main motor =7.5KW, Frequency speed control | Max Line speed of roll Former: Approx.

8-15m/min | Hydraulic Cutting Device | Stop to cut, Post cut, three pieces cutting blades cut | Cutting tool material: Cr12, Heat treatment | Hydraulic unit, Pump motor =3KW | PLC Control System | Control the quantity & cutting length automatically | Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron), etc | Cut-to-length tolerance2mm | 24V Control voltage | Controller with forward/backward/emergenc y stop buttons | Product Rack | Un-powered, 3 units | - - - - Advantage We choose standing pillar frame for thisSteel Shutter Door Machine / Steel Sheet Roller Shutter Door Equipment, this is our new design for roll forming machine, whole Roller Shutter Door Equipment looks more beautiful.
