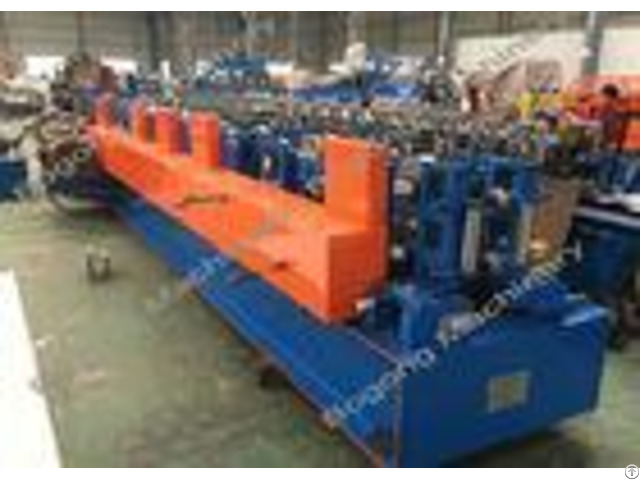

Customized Z U Purlin Roll Forming Machine High Strength Heavy Duty - China

Automatic Change Size Customized C & Z & U Metal Purline Roll Forming Machine Steel Purline Usage Xiamen Bogong brand Automatic Change Size Customized C & Z & U Metal Purline Roll Forming Machine can produce purlins into C, Z and U shape automatically, all the purlin sizes can be set on PLC control screen, and produce corresponding size underthe program setting task.

C Z U purlin is a traditional building materials in steel construction area, the products are widely used as steel roof and wall support frame of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc.

It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

OurAutomatic Change Size Customized C & Z & U Metal Purline Roll Forming Machine isstrong for producing thick hot rolled coil and GI, cold rolled coil, compare to manually type change purline roll forming machine, it cansave human cost and time cost much.

Technical Parameter - - - - Parameters | Specification | Voltage | 380V/50HZ/3PH | Driving Motor | 18.5KW | Hydraulic Cuting Motor | 5.5KW | Motor For Width Adjust | 0.75KW*4 | Forming Steps | 18 | Working Speed | 15-20m/min | Thickness for Steel | 1.0-3.0mm (Material: PPGI, GI Steel G550) | Shaft Diameter | 90mm | Shaft Material | High grade 45# forged steel | Roller Material | Gr15 steel with polished and heat treatment | PLC Cabinet | Schneider | Encoder | Omron | Sprocket Wheel | 45 steel high-frequencies quench | Cut-off System | Post punching post cutting | Cutting Blade Material | Cr12 steel | Machine Frame Material | Fine welded structural steel; | Roofing Material | PPGI, GI steel G330-550 | Painted Color | Blue+Gray White Or Customization | Overall Size | 9000*1400*1800mm | Weight | 9500KGS | - - - - Purlin Design Drawings Feature Of Bogong Machinery C & Z Purline Roll Forming Machines 1 - Our Automatic Change Size Customized C & Z & U Metal Purline Roll Forming Machine is suitable for galvanized steel sheet, hot dip steel coil or sus steel frame.

2 - Producing task is controlled by computer, PLC display, the type change operation is easy for study, good for maintenance.

3 - Customized order roll forming machines, we can make and design kinds of roll forming machine according to customer's request.

Type Change Moving Rollers And Shafts Container Loading
