Galvanized Steel Sheet Trapezoidal Roof Panel Roll Forming Machine - China

price: check with company for price

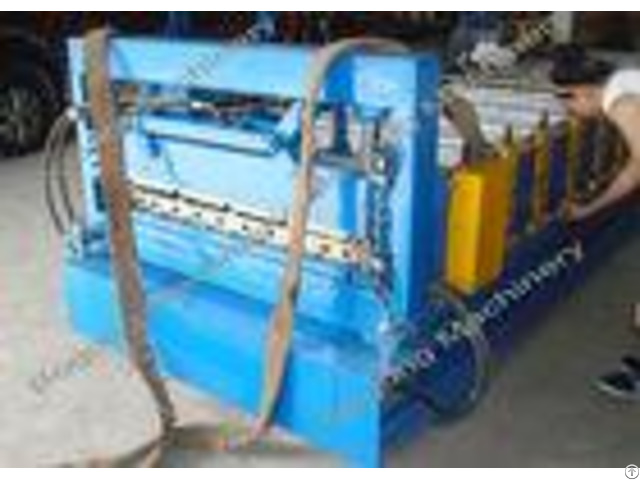

Galvanized Steel Sheet Trapezoidal Roof Panel Roll Forming Machine

Products Photos Catalog Galvanized Steel Sheet Photos Catalog

Galvanized Steel Sheet Trapezoidal Roof Panel Roll Forming Machine Description Trapezoidal roof panel roll forming machine is the machine for roll forming steel or aluminum coil into waves shape, it is suitable for pre-painted coil, galvanized coil and aluminum coil.

Galvanized steel sheet are widely used in roof or wall panel.

We are skilled in producing these Galvanized Steel SheetTrapezoidal Roof Panel Roll Forming Machine.

We provide kinds of advanced designs, manufacturing and have self installing team.

Galvanized Steel SheetTrapezoidal Roof Panel Roll Forming Machine can produce very good appearance and kinds of shape trapezoidal panels which are widely used in plant, house, storage and simple steel roof & wall construction.

Design Drawing Technical Parameter - - - - Machine Component | Specification | 5Tons Manual Deocoiler | Coil Inner-diameter=51030mm.

Coil Outer-diameter Max.

1300mm | Taper wedge expanding system | Load Capacity: Max.

5 Tons; Coil Width Max.

1250mm | Trapezoidal Roof Panel Roll Forming Machine | Gear/Sprocket driving; 10 stations roll forming | Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.

| Shafts Diameter=75mm, Precision Machined, fine Polished | Main motor =5.5KW, Frequency speed control | Max Line speed of roll Former: Approx.

10-15m/min | Hydraulic Cutting Device | Stop to cut, Post cut | Cutting tool material: Cr12, Heat treatment | Hydraulic unit, Pump motor =3KW | PLC Control System | Control the quantity & cutting length automatically | Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron), etc | Cut-to-length tolerance2mm | 24V Control voltage | Controller with forward/backward/emergenc y stop buttons | Product Rack | Un-powered, 3 units | - - - -


Company Contact:


  • Phone: 86-592-6382566

  • Address: Area 5, No. 788 Jimei North Road, Jimei District, Xiamen, China, Xiamen , fujian , China

  • Email: Email


Published date: April 25, 2018

  • Business Description: With good faith in roll forming machines industrial, Xiamen Bogong Automatic Technology Co.

    Ltd has been on effort for kinds of roll forming machines more than 10 years.

    During this period, except ourselve roll forming machines, many oversea customers need other assistant help such steel coil.
