House Roof Top Ridge Cap Roll Forming Machine 400mm Material Width Heavy Duty - China

Metal Steel House Roof Top Ridge Cap Roll Forming Machine Made In China Steel Ridge Cap Drawing Steel House Roof ridge cap samples Technical Parameter - - - - Machine Item | Specification | 3Ton*500mm Hydraulic un-coiler | Hydraulic system for expanding coil inner holePump motor: 3.0KW | Frequency Inverter for regulating turn speedMotor: 4KW | Coil Inner-diameter=51030mm.

Coil Outer-diameter Max.

1300mm | Taper wedge expanding system | Load Capacity: Max.

5 Tons; Coil Width Max.

500mm | Automatic stop device with limited switch as assistance to control stop/start rotation | Self-contained electric controller, out of control system of the complete line | Pre-levelling & punching device | 7 shafts roll shaft design to levelling sheet | Roll Forming Machine | Feeding section with guide | Gear/Sprocket driving, 18-step to formsign | Rollers material 45# Steel, CNC lathes, fine polished, hard Chrome Coated | Shafts material 45# Steel, Diameter 75mm, Precision Machined, fine Polished | Main motor =7.5KW, servo motor | Max.

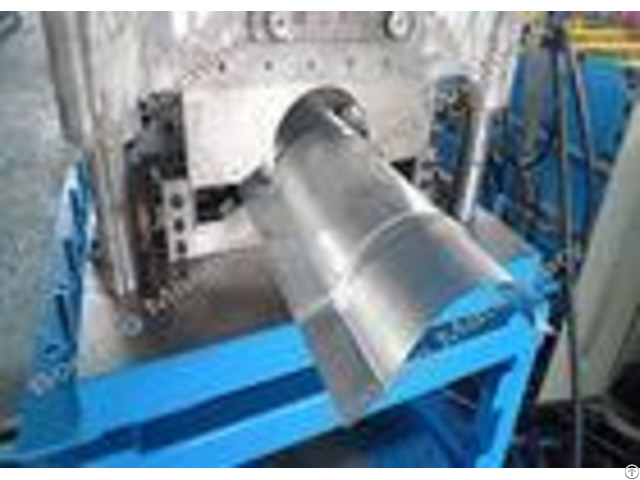

Line speed of roll former: 2-4m/min | Hydraulic Pressing/ Cutting Device | Stop to press/cut, no blanking cut | Cutting tool material: Cr12, Heat treatment | Hydraulic unit, Pump motor =5.5KW | PLC Control System | Control the quantity, punching & cutting length automatically | Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter(Schneider), Encoder (Omron), etc | Cut-to-length tolerance2mm | 24V Control voltage | Product Table | Un-powered, 3 meters long | - - - - Machine Description Whole Metal Steel House Roof Top Ridge Cap Roll Forming Machine normally includes 3tons*500mm uncoiler, pre-shearing&feeding guider, main roll forming machine for producing the profile we need, hydraulic pressing/cutting device and PLC control system.

Ridge cap roof is a part of steel roof system, it is for connecting steel roofs two ends on ridge place roof proof water and make whole roof systems look more beautiful.

Often, metal steel houlse roof ridge cap roll forming machine should be designed according to steel construction style, after give out ridge cap dimensions, we can design and start to manufacture ridge cap roll forming machines.

We Xiamen Bogong Machinery is a professional Chinese factory for manufacturing kinds of traditional roll forming machines and also customized roll forming machines if need it.

Factory Main Bussiness All kinds of steel roll forming machines as: Interchangeable purline roll forming machine; Steel roof sheet roll forming machine; Roof tile roll forming machine; Standing seam roof roll forming machine; Roller shutter door roll forming machine; Door frame roll forming machine; Other steel profile roll forming machines.
