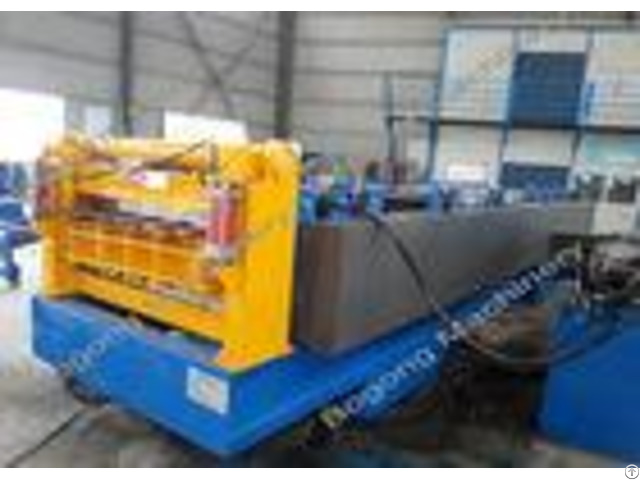

Metal Carriage Board Custom Roll Forming Machine 75mm Shaft Diameter - China
price: check with company for price
Chinese Steel Sheet Carriage Board Panel Roll Forming Machines Personal Customized Description We Xiamen Bogong machinery is a professional factory for producing kinds of roll forming machines in China.
One price has one quality, we ensure will give you corresponding good quality roll forming machines you need.
OurChinese Steel Sheet Carriage Board Panel Roll Forming Machines Personal Customized price is not the best in China, but we can promise quality is the best in China.
Carriage board panel thickness normally is 0.8-2.5mm, more thicker more stronger, it can be used for container carriage or big truck carriage board, very common used in these area.
Technical Parameter - - - - Machine Component | Specification | 5Tons Manual Deocoiler | Coil Inner-diameter=51030mm.
Coil Outer-diameter Max.
1300mm | Taper wedge expanding system | Load Capacity: Max.
5 Tons; Coil Width Max.
1250mm | Dual Layer Cold Rolling Mills | Gear/Sprocket driving; 22 stations forming | Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.
| Shafts Diameter=75mm, Precision Machined, fine Polished | Main motor =15KW, Frequency speed control | Max Line speed of roll Former: Approx.
10-15m/min | Hydraulic Cutting Device | Stop to cut, Post cut, slug cut | Cutting tool material: Cr12, Heat treatment | Hydraulic unit, Pump motor =5.5KW | PLC Control System | Control the quantity & cutting length automatically | Combined with: PLC (Siemens), Touch Screen (Siemens), Encoder (Omron), etc | Cut-to-length tolerance2mm | 24V Control voltage | Portable controller with forward/backward/emergenc y stop buttons | Product Rack | Un-powered, 3 units | - - - - Machine Details Our Chinese Steel Sheet Carriage Board Panel Roll Forming Machines Personal Customized design is manufactured as strong machine frame, with beautiful screw and nuts installation.
Stronger cutting set with high power hydralic oil pump Chinese Steel Sheet Carriage Board Panel Roll Forming Machines Personal CustomizedPLC control box for controlling cutting pieces, cutting length, etc.
Company Contact:
- Posted By: Xiamen Bogong I & E Co., Ltd.
- Phone: 86-592-6382566
- Address: Area 5, No. 788 Jimei North Road, Jimei District, Xiamen, China, Xiamen , fujian , China
- Email:
Published date: April 25, 2018
- Business Description: With good faith in roll forming machines industrial, Xiamen Bogong Automatic Technology Co.
Ltd has been on effort for kinds of roll forming machines more than 10 years.
During this period, except ourselve roll forming machines, many oversea customers need other assistant help such steel coil.
