Plc Control Shutter Door Roll Forming Machine Frequency Speed 5800 650 1650mm - China

Chinese Manufacture Good Price Steel Roller Shutter Door Roll Forming Machine Introduction Shutter door slats made from hot/cold rolled steel strips, and hole punched, roll formed, and cut to length by the Chinese Manufacture Good Price Steel Roller Shutter Door Roll Forming Machine.

Steel roller shutter door is the popular door material in many area, such as commercial used building, garages, shopping malls, hospitals, factories and mineral place, and even other public places or residential, so the Steel Roller Shutter Door Roll Forming Machine is widely used machines for many business market.

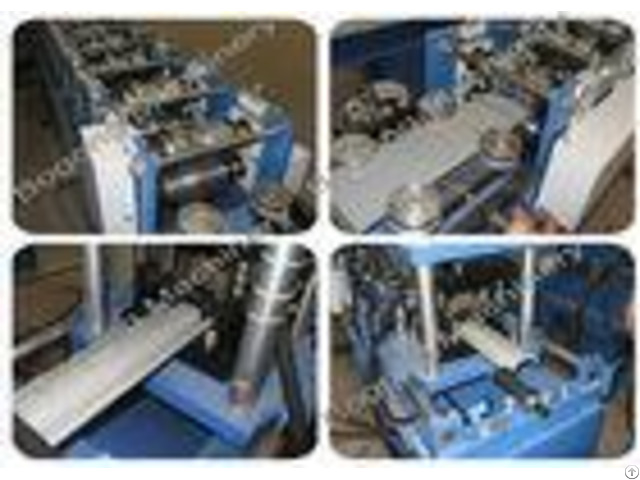

This Chinese Manufacture Steel Roller Shutter Door Roll Forming Machineconsists of feeding unit, uncoiler, feeding guide, roll forming machine, cutter, product support rack, hydraulic system and PLC control system, but good quality price in the market.

TechnicalProcess Uncoiler---Feeding---Leve lingRoll Forming---Cutting---Produ cts Collecting Technical Prameter - - - - 1.5Tons Manual Deocoiler | Coil Inner-diameter=51030mm.

Coil Outer-diameter Max.

1300mm | Taper wedge expanding system | Load Capacity: Max.

1.5 Tons; Coil Width Max.

1250mm | Steel Roller Shutter Door Roll Forming Machine | Gear/Sprocket driving; 14 stations roll forming | Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.

| Shafts Diameter=65mm, Precision Machined, fine Polished | Main motor =4KW, Frequency speed control | Max Line speed of roll Former: Approx.

10-15m/min | Hydraulic Cutting Device | Stop to cut, Post cut | Cutting tool material: Cr12, Heat treatment | Hydraulic unit, Pump motor =3KW | PLC Control System | Control the quantity & cutting length automatically | Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron), etc | Cut-to-length tolerance2mm | 24V Control voltage | Controller with forward/backward/emergenc y stop buttons | Product Rack | Un-powered, 3 units | - - - - Design drawing and sample See below design, YX19-76Steel Metal Roller Shutter Door Machine / Roller Door Cold Roll Forming Machinedesign and sample Feeding guider Roll Forming Machine Package Before Shipment Bogong Advantage 1 - We producing orders under factory team work, with rich experience in design, manufacture and export for roll forming machines.

2 - We can make kinds of customized roll forming machines according to your requests.

3 - Bogong always choose good and strong quality steel materials, famous electric part and system for whole roll forming machines line.

4 - Groups of professional engineers, designers and oversea sales for roll forming machines.
