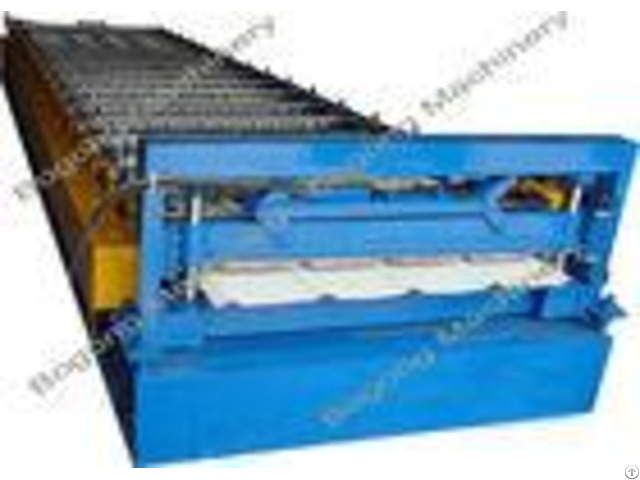

Trapezoidal Sheet Roof Panel Roll Forming Machine For Light Steel Construction - China

Steel Metal Trapezoidal Roof Panel Roll Forming Machine Made In China Main Features Steel Metal Trapezoidal Roof Panel Roll Forming Machine, choose roll forming method, can produce beautiful appearance, different tention grade steel coil which are extensively used in metal roof construction or outdoor decoration.

This type of steel metal roof roll forming machine possesses advanced and innovative technology that can provide convenient roller change.

Whole machinecan be equipped with PLC control system and touch screen.

Introduction Of Trapezoidal Roof Panel Roll Forming Machine 1 - Our steel metal roll forming machine is widely used in light steel construction area, high way guider and steel construction factory etc.

2 - Line speed of this panel roll forming machine is 0~20m/min.

3 - This YX22-265-1060 steel metal trapezoidal roof panel roll forming machine production line consists of feeding unit, uncoiler, feeding guide, roll forming machine, cutter, automatic stacker, hydraulic system and electric control system.

TechnicalProcess Uncoiler---Feeding---Leve ling---pre-cut --Roll Forming---Cutting---Produ cts Collecting Technical Prameter - - - - Name | Steel Metal Trapezoidal Roof Panel Roll Forming Machine | Driving Motor | 5.5KW | Hydraulic Motor | 3KW | Forming Steps | 16 | Working Speed | 0-15m/min | Roofing Height | 22mm | Effective Width | 1060mm | Material Width | 1200/1220mm | Thickness for Steel | 0.4-0.6mm (Material: PPGI, GI Steel G550) | Tolerance for Cutting | 2mm | Tolerance for Roof Width | 5mm | Shaft Diameter | 75mm | Shaft Material | High grade 45# forged steel | Roller Material | Gr15 steel with polished and heat treatment, | 45# forged steel coated by chrome | Sprocket Wheel | 45 steel high-frequencies quench | Cut-off System | Hydraulic cutting device | Cutting Blade Material | Cr12 steel | Machine Frame Material | Fine welded structural steel; | Roofing Material | PPGI, GI steel G330-550 | Painted Color | Blue+Gray White Or Customization | Overall Size | 8200*1550*1450mm | Weight | 5500KGS | - - - - Whole Line Components Un coiler Straightening and Feeding Equipment Pre-cutting device (option roll forming machine Cut-off with cutting blade Run out table Design drawing and sample See below design, YX22-265-1060 Metal Roofing Roll forming machine can both roll forming 1200mm width 550Mpa material, also can forming 1220mm high tention grade material, there is small bend on the right side of 1200mm sample and 1220mm sample is the normal design as we have done before.

Roll Forming Machine Batch Order and Package Bogong Advantage 1 - Factory team work, rich experience in design, manufacture and export for roll forming machines.

2 - Kinds of ustomized roll forming machines according to your requests.

3 - Good and strong quality steel materials, famous electric part and system for whole roll forming machines line.

4 - Groups of professional engineers, designers and oversea sales for roll forming machines.
