8hp Low Temperature Condensing Unit Water Cooled Box Type For Sea Food Freezing - China

8HP Low Temp Water Cooled Box Type V Condensing Unit For Sea Food Freezer Product Features : 1 .

Application range : food processing, logistic center, vegetable preservation, meat processing center, chain restaurant, medicine stores, seeds processing store, medical lab, biological medicine store, dairy products processing, edible fungus breeding center, Temperature range from - 5 C to - 23 C 2 .

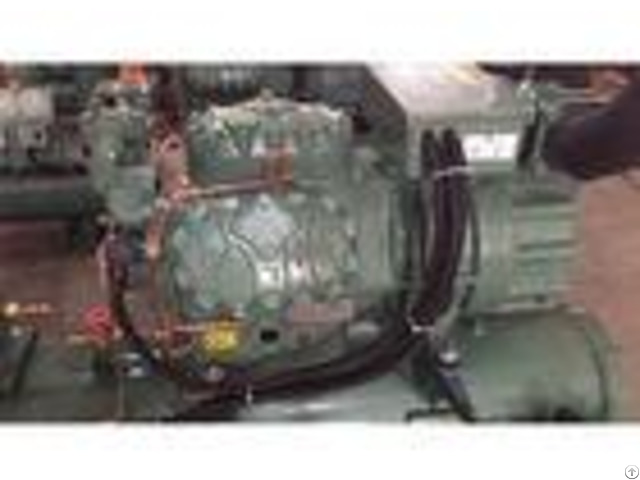

Box type refrigerating unit is composed of refrigeration compressor with high performance, condenser with optimized design and control element .

3 .

The entire design is reasonable .

Upward design of air outlet of condenser reduces the interference to surrounding environment and meets the concept of environmental protection .

Hermetic Water - Cooled Refrigeration Unit Technical Parameters : 1 .

Condenser Details : Condenser Form : Shell & Tube Condenser Rated Water Flow ( m3 / h ) : 3 Connection Size : RC 1 - 1/ 2 2 .

Refrigerant Capacity Of Compressor : a .

Evaporating Temperature - 15 Cooling Capacity : 16050W Power : 6870 W b.

Evaporating Temperature- 25 Cooling Capacity : 10250 W Power : 6120W c .

Evaporating Temperature- 35 Cooling Capacity : 4440W Power : 3680W 3 .

Coupling - - - - Tube Coupling | 5 / 8 | Suction Coupling | 1 - 3 / 8 | - - - - 4 .

Overall Dimensions : - - - - Length ( L ) | 1162mm | Width ( B ) | 300mm | Height ( H ) | 704mm | - - - - 5 .

Mounting Dimensions : Length (D ) : 600mm Width (E ) : 200mm Standard configuration of units : compressor, scroll and tube condenser, pressure controller, pressure gauge, filter, solenoid valve and wiring box, etc .

Note: 1 .

Cooling capacity in the form is calculated when the ambient temperature is 40 .

2 .

Configuration can be added according to customers requirements .

Overall Dimension Diagram Of Water - Cooled Refrigeration Unit :
