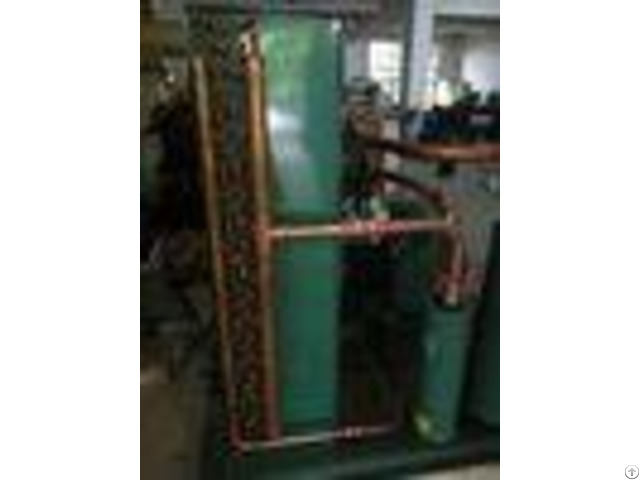

Bitzer Restaurant Refrigeration Condensing Unit 25hp With Air Cooling Low Temperature - China

25HP Bitzer Restaurant Refrigeration Units With Air Cooling Low Temperature Product Features : 1 .

The fins produced are of vry high standard of quality having flare position made of plain, wave type .

2 .

The edge of fins can be straight or ripple depending upon application .

3 .

All the coils are 100% tested for leakages and passed through the heating oven with ht air circulation for inside and ourtside cleaning and charged nitrogen .

4 .

The mechanical bullet expansion of copper tube to fin ensures efficient heat transfer of co - densers and evaporators .

5 .

The row material of excellence: We source only the best quality raw material from aroud the world, to manufacture heat exchangers that are of globally acceptable standards .

6 .

Plain copper pipe of 7mm, 7.94mm, 9.52mm and 12.75mm diameter .

7 .

Aluminum foil in blu color with hydrophilic and bio ( Health ) properties .

Water - Cooled Refrigeration Condensing Unit Technical parameters : 1 .

Condenser Details : - - - - Form | Rated Air Flow ( m3 / h ) | Connection Size | Fin Condenser | 2*10820 | RC 3 / 4 - 2 - 1 / 8 | - - - - 2 .

Refrigerant Capacity Of Compressor : a .

Evaporating Temperature -15 - - - - Cooling Capacity | 38900 W | Power | 22200 W | - - - - b.

Evaporating Temperature - 25 - - - - Cooling Capacity | 25200 W | Power | 17500 W | - - - - c .

Evaporating Temperature - 35 - - - - Cooling Capacity | 14500 W | Power | 13200 W | - - - - 3 .

Coupling - - - - Tube Coupling | 3 / 4 | Suction Coupling | 2 - 1 / 8 | - - - - 4 .

Overall Dimensions : - - - - Length ( L ) | 1700 mm | Width ( B ) | 1000 mm | Height ( H ) | 1780 mm | - - - - Standard configuration of units : compressor, condenser, liquid receiver, pressure controller, pressure gauge, filter, solenoid valve and wiring box, etc .

Note: 1 .

Cooling capacity in the form is calculated when the ambient temperature is 40 .

2 .

Configuration can be added according to customers' requirements .
