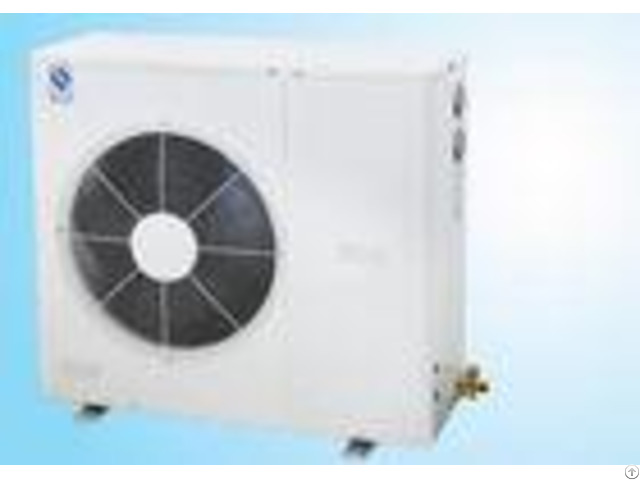

Box Type 3hp Air Cooled Condensing Unit Easily Installation For Medicine Agriculture - China
price: check with company for price
Customized Semi - Hermetic Air Cooled Condensing Unit For Hotel Cold Room Products Feature : Exclusive use integration unit has more advantages such as easily installation, facility and so on .
Ensure to use the cold room well owing to it ignore the factors like the level of profession and the limit of equipment .
It will save the install cost, labor cost and material loss cost, reduce maintained cost and workload .
Widely used in hotels, food, health, medicine, agriculture, chemical and so on .
Semi - Hermetic Air - Cooled Refrigeration Unit Technical parameters : 1 .
Condenser Details : - - - - Qty Of Fan ( piece ) | Air Volume ( m3 / h ) | Power of Fan ( W ) | 2 | 2 * 1800 | 2 * 120 | - - - - 2 .
Refrigerant Capacity Of Compressor : a.
Evaporating Temperature25 - - - - Cooling Capacity | 3630 W | Power | 2430 W | - - - - b .
Evaporating Temperature - 35 - - - - Cooling Capacity | 1730 W | Power | 1670 W | - - - - 3 .
Coupling - - - - Tube Coupling | 3 / 8 | Suction Coupling | 7 / 8 | - - - - 4 .
Overall Dimensions : - - - - Length ( L ) | 1010mm | Width ( B ) | 710mm | Height ( H ) | 520mm | - - - - 5 .
Mounting Dimensions : - - - - Length ( D ) | 960mm | Width ( E ) | 420mm | - - - - Standard configuration of units : compressor, condenser, liqid receiver, pressure controller, pressure gauge, filter, solenoid valve and wiring box, etc .
Note : 1 .
Cooling capacity in the form iscalculated when the ambiernt temperature is 32 - 2 .
Configuration can be added according to customers' requirements .
3 .
When the compressor using refrigerant R22, and evaporating temperature lower than - 15 cylinder head fan must be installed .
When the evaporating temperature below - 25 the compressor hydrojet system also must be installed .
4 .
When the compressor using refrigerant R404a, and evaporating temperature lower than - 20 cylinder head fan must be installed .
Company Contact:
- Phone: 86-20-83177358
- Address: D310 Mingzhu Creative Center No. Huayuan Road Baiyun District, Guangzhou China, Guangzhou , Guangdong , China
- Email:
Published date: April 13, 2018
- Business Description: In addition to ISO9001-2008 certification, the condensing units accord with the GB / T21363 - 2008 standard , and gain the manufacturing license of refrigeration equipment , condensers and evaporators achieve the standard of GB / T25129 - 2010 , Also pass the CE certification .
