Yalan 207 Mechanical Seal For Reactors Drying Machine And Evaporators - China

Basic Features

Structure: Double-End

Pressure: General Pressure Mechanical Seals

Speed: General Speed Mechanical Seal

Temperature: General Temperature Mechanical Seal

Performance: Wear and Corrosion

Standard: HG5-754-78, HG/T2098-91, HG/T2098-2011

Model NO: 207

Balance: Balanced

Specification: Inner Diameter: 30 mm to 220 mm

Product Detailed Description

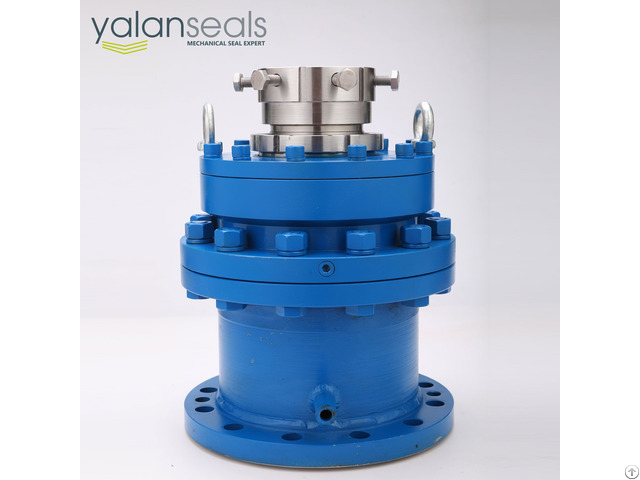

YALAN 207 Mechanical Seal for Reactors, Drying Machine and Evaporators Structural Features: double end, multiple springs, balanced, fixed rotary direction, with internal bearing, cartridge mechanical seal.

The multi spring design make sure the load on the seal faces are balanced.

The top of the seal has radial bearing which can decrease the unnecessary movement of the shaft.

The seal tank has cooling jacket that optimizes the operating conditions of the seal.

The locked screw transmission design has directivity and it is easy to install with reliable performance.

1 - The top bearing should not be used as agitating support point.

2 - When the medium temperature is above 180 ºC a cooling tank is needed to be installed, which will increase the operating height of the whole component by 80 mm.

3 - When the pressure is above 0.3 MPa, auxiliary seal system is needed.

Industrial Standards: HG5-754-78, HG/T2098-91, HG/T2098-2011 Scopes of Application: widely used in chemical engineering, smelting, pharmacy, food processing, MHW, and oil refining.

It is specifically designed for reactors, drying machine and evaporators.

Operation Parameters:

Pressure: - 0.1 to 2.5 MPa

Temperature: - 40 ºC to 180 ºC

Linear Speed: 2 m/s or less

Materials:

Rotary Ring Face: Surfacing Alloy/TC/SiC

Stationary Ring Face: Carbon/SiC

Elastomers: FKM/PTFE/EPDM

Springs: SS304/SS316/HC276

Metal Parts: SS304/SS316/SS316L/2205/2 507/Q235

Mediums: water, oil, weak acid, weak alkali, flammable, explosive, toxic gas and etc.

Customization: Changes of materials for getting other operating parameters are possible.

Contact us with your requirements.
